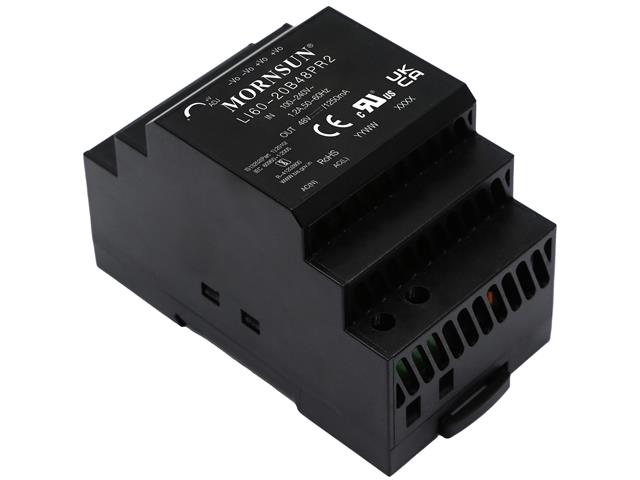

DIN Rail Plastic Case Switch Mode Power Supply Input: 90 ~ 264VAC/120 - 370VDC. Output 5VDC @ 6,5A 4KVAC Isolation (HDR-60-5)
DIN Rail Plastic Case Switch Mode Power Supply
Overview
LI60-20BxxPR2 is Mornsun’s AC-DC series featuring a cost-effective, energy efficient solution for standard DIN-rail mounting. Theproductsoffer a high level of stability and immunity to noise, compliant with international IEC62368 standards for EMC and safety sepecifitionsmeetIEC/EN61000-4, CISPR32, EN55032, UL62368, IEC62368 and EN62368. These light weight AC-DC converters also have an extremelycompactdesign for space saving and are ideal for applications such as industrial control equipment machinery and all kinds of applicationsinaharsh environment
Feature
- Universal 85-264VAC or 120-370VDCinput voltage
- Accepts AC or DC input (dual-use of sameterminal)
- Operating ambient temperature range: -40℃to+70℃
- High I/O isolation test voltage up to 4000VAC
- Industrial-grade design
- OVC III (EN61558-1 standards)
- Low standby power consumption, high efficiency
- Low ripple & noise
- Output short circuit, over-current, over-voltageprotection
- Withstand 300VAC surge input for 5s
- DIN rail TS35X7.5/ TS35X15 mountable
- Safety according to EN61558
Additional Information
| Device |
Power Supply |
| Type |
Switch Mode |
| Size |
W-52mm x H-93mm x D-58mm |
Elevate your industrial applications with the LI60-20B05PR2 DIN Rail Switch Mode Power Supply. This compact, energy-efficient power supply delivers a stable 5VDC at 6.5A, ensuring maximum reliability in harsh environments. With dual AC/DC input compatibility, robust protection features, and compliance with international safety standards, it’s the perfect choice for seamless operation and peace of mind.
