LI60-20B05PU

Name: LI60-20B05PU - Communica [Part No: LI60-20B05PU]
Brand: Mornsun
SKU: LI60-20B05PU
Price: 450 ZAR
Availability: OutOfStock

SKU: LI60-20B05PU

BRAND: Mornsun

Sold Out
R 517.50_{(inc VAT)}
R 450.00_{(ex VAT)}

Collections: Power

Type: Power Supplies

Category: Din Rail Power Supply, Switch Mode Power Supplies

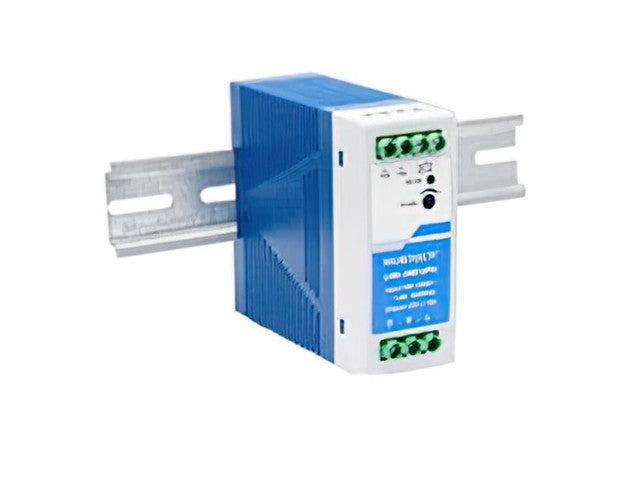

DIN Rail Plastic Case Switch Mode Power Supply Input: 85 ~ 264VAC/120 - 370VDC. Output 5VDC @ 10A 4KVAC Isolation (MDR-60-5)

Plastic Case Switch Mode Power Supply Input

Specifications

Product Type: AC/DC Switch-Mode Power Supply

Mounting Type: DIN Rail

Output Voltage: 5 VDC

Output Current: 10 A

Output Power: 50 W

Input Voltage (AC): 85–264 VAC

Input Voltage (DC): 120–370 VDC

Input Frequency: 47–63 Hz

Output Adjustment Range: 5–6 VDC

Efficiency: Up to 83%

Isolation Voltage: 4 kVAC

Operating Temperature: -25°C to +70°C

Cooling: Natural air cooling

Mounting Rail: TS35 × 7.5 / TS35 × 15 DIN rail

Dimensions: Approx. 102 × 91.5 × 36.5 mm

Housing Material: Plastic

Output Protection: Short-circuit, over-current, and over-voltage protection

DC OK Function: Yes

Maximum Altitude: Up to 5,000 m

Ripple & Noise: ≤100 mV peak-to-peak at 20 MHz bandwidth

Line Regulation: ±1%

Load Regulation: ±1.5% for 5V output

Minimum Load: 0 A

Input Type: AC/DC dual input through the same terminals

Standards Referenced: UL/IEC 62368, UL 61010, UL 508

Applications: Industrial control systems, PLCs, automation equipment, machinery, instrumentation, networking equipment, and other DIN-rail industrial applications

Downloads

Datasheet

Additional Information

Device	Plastic Case Switch Mode Power Supply Input
Type	Plastic \| Case \| Switch \| Mode \| Power \| Supply \| Input

The LI60-20B05PU DIN Rail Power Supply offers reliable 5VDC output at 10A, perfect for industrial control and automation systems. With up to 83% efficiency and robust protection features, it ensures safe operation in demanding environments. Compact and easy to install, this durable power supply is your ideal solution for seamless performance in any application.
