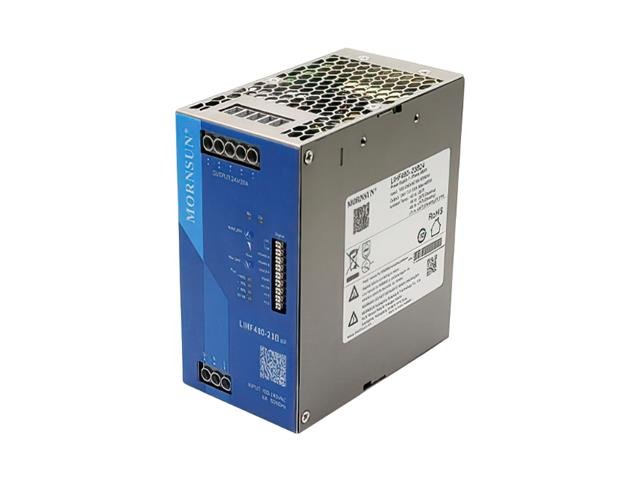

LIHF480-23B24

Name: LIHF480-23B24 - Communica [Part No: LIHF480-23B24]
Brand: Mornsun
SKU: LIHF480-23B24
Price: 4965 ZAR
Availability: InStock

SKU: LIHF480-23B24

BRAND: Mornsun

R 5,709.75_{(inc VAT)}
R 4,965.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Power

Type: Power Supplies

Category: Din Rail Power Supply

DIN Rail Metal Case Hi End/Hi Reliability Switch Mode Power Supply with Active PFC. Input: 85 ~ 277VAC/120 - 390VDC. Output 24VDC @ 20A IECEx/Atex Certified

Reliability Switch Mode Power Supply

Feature

Universal 85 - 277VAC or 120 - 390VDC Input voltage
Operating ambient temperature range: -40℃ to +85℃, full load at 60℃
High efficiency, high reliability
Transient peak current function: 6 times rated current for 15ms
Up to 150% (PN) dynamic power for 5s
Continuous static power margin of up to 125% (PN)
Support 5+1 bus high precision parallel current sharing
Active PFC, PF＞0.98
Support DC OK, AC OK, remote control function
Support ModBus communication protocol
Double-sided conformal coating, salt-spray proof, explosion-proof
Operating altitude up to 5000m
OVC III (design refer to EN62477, 2000m)
OVC II
Pollution degree 2
5 years warranty
Output short circuit, over-current, over-voltage, over-temperature protection, input under voltage protection
Safety according to ATEX, IECEx increased safety type explosion-proof certification
Meets ANSI/ISA 71.04-2013 G3
Safety according to IEC/UL62368, GB4943, IEC/EN61010, EN61558, EN62477, IEC60079, GB3836, NB/T3101

Downloads

Datasheet - LIHF480-23B24

Additional Information

Device	Power Supply
Type	Reliability \| Switch Mode

Experience unparalleled reliability with the LIHF480-23B24 Switch Mode Power Supply, designed for extreme conditions with an operating range of -40℃ to +85℃. Featuring active PFC, high efficiency, and multiple safety certifications, this metal case power supply ensures optimal performance and protection for your applications. Perfect for industrial use, it delivers 24VDC at 20A and supports advanced features like ModBus communication and dynamic power management.
