SKU: LIHF480-23B48

BRAND: Mornsun

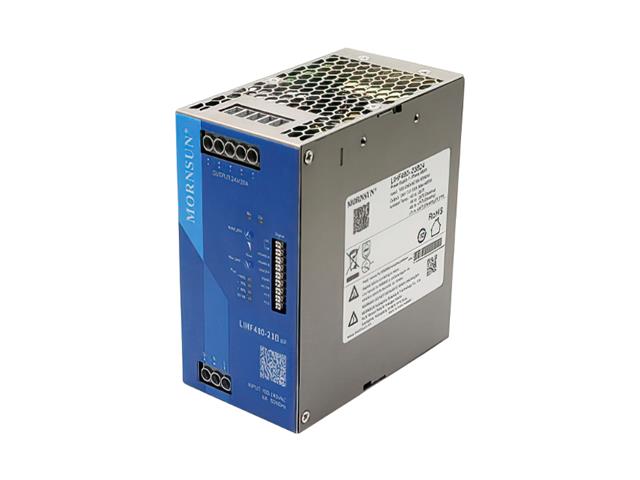

DIN Rail Metal Case Hi End/Hi Reliability Switch Mode Power Supply with Active PFC. Input: 85 ~ 277VAC/120 - 390VDC. Output 48VDC @ 10A IECEx/Atex Certified

Reliability Switch Mode Power Supply


  • Universal 85 - 277VAC or 120 - 390VDC Input voltage
  • Operating ambient temperature range: -40℃ to +85℃, full load at 60℃
  • High efficiency, high reliability
  • Transient peak current function: 6 times rated current for 15ms
  • Up to 150% (PN) dynamic power for 5s
  • Continuous static power margin of up to 125% (PN)
  • Support 5+1 bus high precision parallel current sharing
  • Active PFC, PF>0.98
  • Support DC OK, AC OK, remote control function
  • Support ModBus communication protocol
  • Double-sided conformal coating, salt-spray proof, explosion-proof
  • Operating altitude up to 5000m
  • OVC III (design refer to EN62477, 2000m)
  • OVC II
  • Pollution degree 2
  • 5 years warranty
  • Output short circuit, over-current, over-voltage, over-temperature protection, input under voltage protection
  • Safety according to ATEX, IECEx increased safety type explosion-proof certification
  • Meets ANSI/ISA 71.04-2013 G3
  • Safety according to IEC/UL62368, GB4943, IEC/EN61010, EN61558, EN62477, IEC60079, GB3836, NB/T3101


Additional Information

Device Power Supply
Type Reliability | Switch Mode
