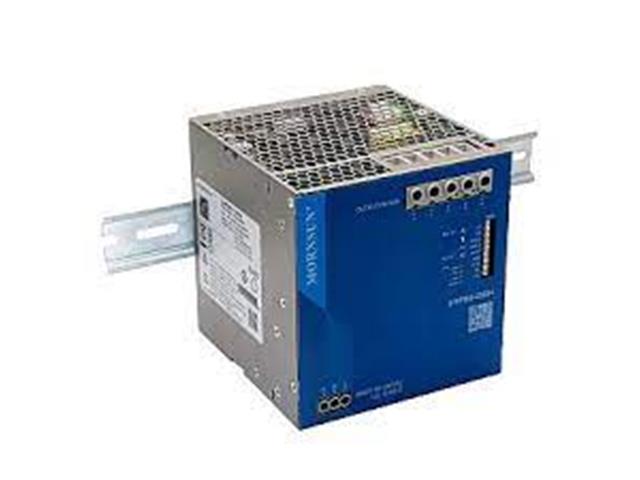

LIHF960-23B24

SKU: LIHF960-23B24

BRAND: Mornsun


DIN Rail Metal Case Hi End/Hi Reliability Switch Mode Power Supply with Active PFC. Input: 85 ~ 277VAC/120 - 390VDC. Output 24VDC @ 40A IECEx/Atex Certified

Reliability Switch Mode Power Supply

Feature

  • Universal 85 - 277VAC or 120 - 390VDC Input voltage
  • Operating ambient temperature range: -40℃ to +85℃, full load at 60℃
  • High efficiency, high reliability
  • Continuous static power margin of up to 112% (PN)
  • Provides 5s up to 150% (PN) dynamic power
  • Support 5+1 parallel redundancy, current sharing
  • Active PFC, PF>0.97
  • Support DC OK, AC OK, remote control function
  • Support ModBus communication protocol
  • Double-sided conformal coating, salt-spray proof, explosion-proof
  • Operating altitude up to 5000m
  • 5 years warranty
  • Output short circuit, over-current, over-voltage, over -temperature protection
  • Pollution degree 2
  • OVC II
  • OVC III (design refer to EN62477, 2000m)
  • Meets ANSI/ISA 71.04-2013 G3 corrosion test
  • Safety according to IEC/UL62368, GB4943, IEC/EN/UL61010, EN61558, EN62477, IEC60079, GB3836, NB/T31017

Additional Information

Device Power Supply
Type Reliability | Switch Mode
