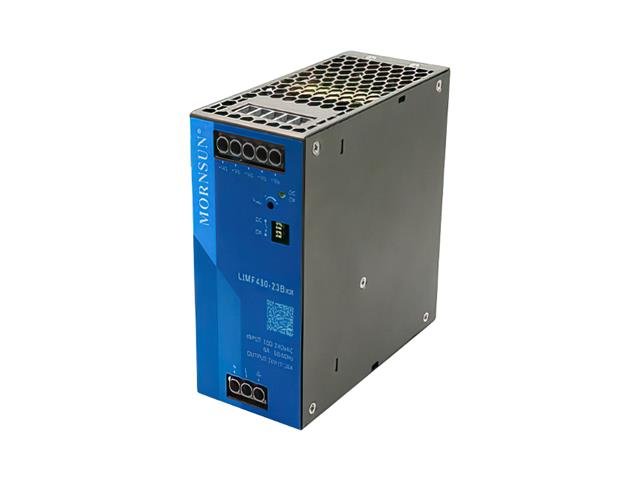

LIMF240-23B24

SKU: LIMF240-23B24

BRAND: Mornsun


DIN Rail Metal Case Hi Perf./Hi Reliability Switch Mode Power Supply with Active PFC. Input: 85 ~ 277VAC/120 - 390VDC. Output 24VDC @ 10A IECEx/Atex Certified

Reliability Switch Mode Power Supply

Feature

  • Universal 85 - 277VAC or 120 - 390VDC Input voltage
  • Efficiency up to 95.5%
  • Operating ambient temperature range: -40℃ to +85℃
  • 150% peak load
  • Active PFC, PF>0.99
  • DC OK function
  • Double-sided conformal coating, salt-spray proof, explosion-proof
  • Operating altitude up to 5000m
  • 5 years warranty
  • Output short circuit, over-current, over-voltage, over-temperature protection
  • Safety according to ATEX, IECEx increased safety type explosion-proof certification
  • Meets ANSI/ISA 71.04-2013 G3 corrosion test
  • Safety according to IEC/UL62368, UL508

Downloads

Additional Information

Device Power Supply
Type Reliability | Switch Mode
