LM100-23B48R2S

Name: LM100-23B48R2S - Communica [Part No: LM100-23B48R2S]
Brand: Mornsun
SKU: LM100-23B48R2S
Price: 328.31 ZAR
Availability: InStock

SKU: LM100-23B48R2S

BRAND: Mornsun

R 377.56_{(inc VAT)}
R 328.31_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Power

Type: Power Supplies

Category: Metal Case Power Supply, Switch Mode Power Supplies

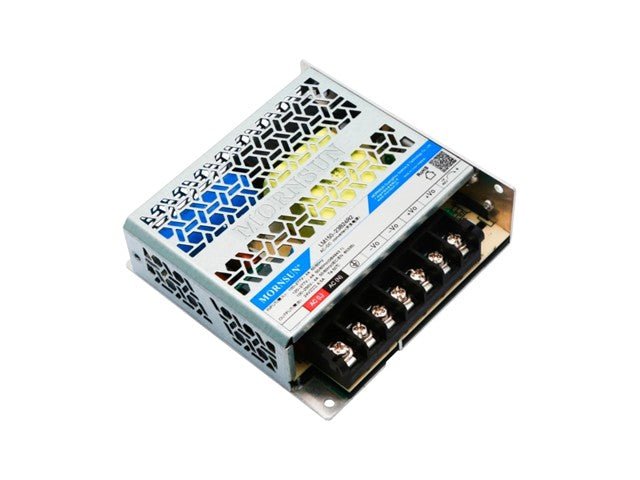

Metal Case Small Outline Switch Mode Power Supply Input: 85 ~ 305VAC/120 - 430VDC. Output 48VDC @ 2,3A. Terminal Block Term. 4KVAC Isolation

Small Outline Switch Mode Power Supply

Feature

Universal 85 - 305VAC or 120 - 430VDCinput voltage
Accepts AC or DC input (dual-use of sameterminal)
Operating ambient temperature range: -30℃to+70℃
Low standby power consumption, high efficiency
High I/O isolation test voltage up to 4000VAC
Low ripple & noise
Output short circuit, over-current, over-voltageprotection
OVC Ⅲ (designed to meet EN61558)
Operating up to 5000m altitude

Downloads

Datasheet - LM100-23B48

Additional Information

Device	Power Supply
Type	Small Outline \| Switch Mode
Input Voltage	85 ~ 305VAC/120 - 430VDC
Output	48VDC @ 2,3A
Size	129.00 x 97.00 x 30.00mm

The LM100-23B48R2S is a high-efficiency switch mode power supply offering versatile input options from 85-305VAC or 120-430VDC. With a reliable 48VDC output at 2.3A, it ensures low ripple and noise while delivering superior protection against short circuits, over-current, and over-voltage. Ideal for diverse applications, this robust power supply operates efficiently in extreme temperatures and up to 5000m altitude, making it the perfect choice for your power needs.
