LM15-23B12

SKU: LM15-23B12

BRAND: Mornsun

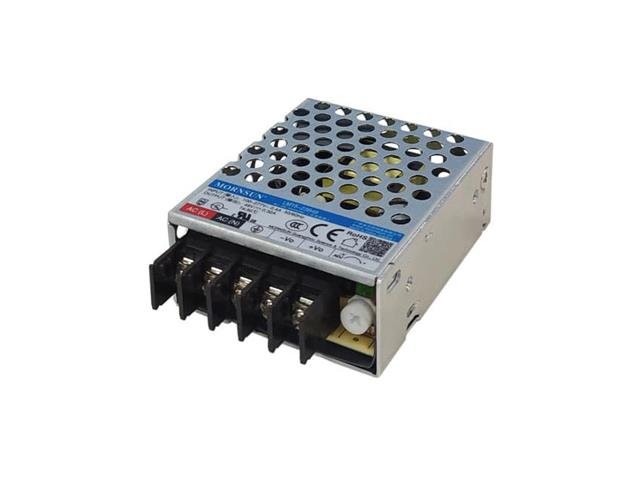

Metal Case Small Outline Switch Mode Power Supply Input: 85 ~ 305VAC/100 - 430VDC. Output 12VDC @ 1,3A. Terminal Block Term. 4KVAC Isolation (RS-15-12)

Small Outline Switch Mode Power Supply

Overview

LM15-23B12 series is one of Mornsun’s enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency and high reliability. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

Feature

  • 85 - 305VAC or 100 - 430VDC input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -30℃ to +70℃
  • Up to 83% efficiency
  • No-load power consumption < 0.5W
  • High I/O isolation test voltage up to 4000VAC
  • Output short circuit, over-current, over-voltage
  • protection
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Operating up to 5000m altitude

Downloads

Additional Information

Device Power Supply
Type Small | Outline | Switch Mode
Size 65.00 x 55.00 x 25.00 mm
