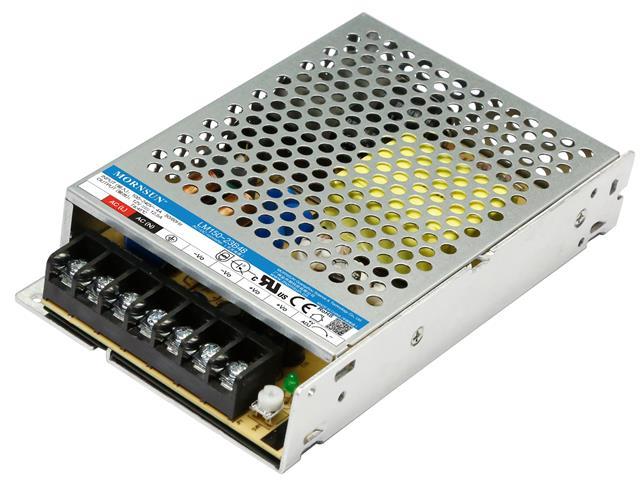

LM150-23B15

Name: LM150-23B15 - Communica [Part No: LM150-23B15]
Brand: Mornsun
SKU: LM150-23B15
Price: 510.05 ZAR
Availability: OutOfStock

SKU: LM150-23B15

BRAND: Mornsun

Sold Out
R 586.56_{(inc VAT)}
R 510.05_{(ex VAT)}

Collections: Power

Type: Power Supplies

Category: Metal Case Power Supply, Switch Mode Power Supplies

Metal Case Small Outline Switch Mode Power Supply Input: 85 ~ 305VAC/120 - 430VDC. Output 15VDC @ 10A. Terminal Block Term. 4KVAC Isolation

Small Outline Switch Mode Power Supply

Feature

Universal 85 - 305VAC or 120 - 430VDC Input voltage
Accepts AC or DC input (dual-use of same terminal)
Operating ambient temperature range: -30℃ to +70℃
Low standby power consumption, high efficiency
High I/O isolation test voltage up to 4000VAC
Low ripple & noise
Output short circuit, over-current, over-voltage,
over-temperature protection
IEC/EN/UL62368, EN60335, EN61558, GB4943 safety
approved
Over-voltage class Ⅲ (designed to meet EN61558)
Operating altitude up to 5000m

Downloads

Datasheet - LM150-23B15

Additional Information

Device	Power Supply
Type	Small Outline \| Switch Mode
Input Voltage	85 ~ 305VAC/120 - 430VDC
Output	15VDC @ 10A
Size	159.00 x 97.00 x 30.00 mm

Discover the LM150-23B15, a compact switch mode power supply offering versatile input options from 85-305VAC or 120-430VDC. With a reliable 15VDC output at 10A, it ensures high efficiency, low noise, and robust protection features, making it ideal for various applications. Enjoy peace of mind with approved safety standards and a wide operating temperature range for enhanced performance. Upgrade your power solutions today!
