LM25-23B12

Name: LM25-23B12 - Communica [Part No: LM25-23B12]
Brand: Mornsun
SKU: LM25-23B12
Price: 234.43 ZAR
Availability: InStock

SKU: LM25-23B12

BRAND: Mornsun

R 269.59_{(inc VAT)}
R 234.43_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Power

Type: Power Supplies

Category: Metal Case Power Supply, Switch Mode Power Supplies

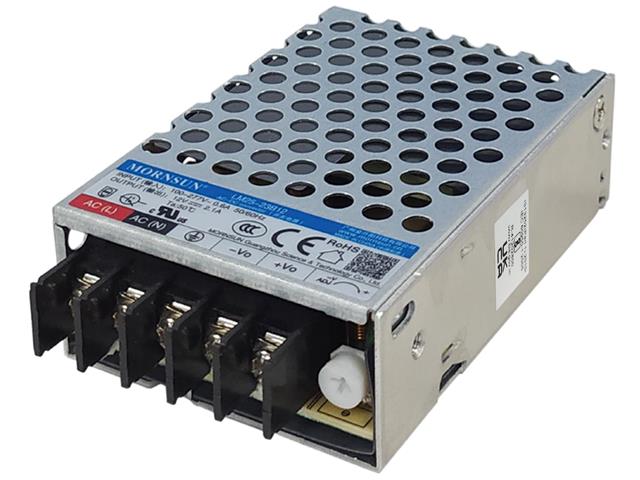

Metal Case Small Outline Switch Mode Power Supply Input: 85 ~ 305VAC/100 - 430VDC. Output 12VDC @ 2,1A. Terminal Block Term. 4KVAC Isolation (RS-25-12) (Metal Case 12V - 2,1A)

Small Outline Switch Mode Power Supply

Overview

LM25-23B12 series is one of Mornsun’s enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency and high reliability. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

Feature

85 - 305VAC or 100 - 430VDC input voltage
Accepts AC or DC input (dual-use of same terminal)
Operating ambient temperature range: -30℃ to +70℃
Up to 88% efficiency
No-load power consumption < 0.5W
High I/O isolation test voltage up to 4000VAC
Output short circuit, over-current, over-voltage Protection
Over-voltage class Ⅲ (designed to meet EN61558)
Operating up to 5000m altitude

Specifications

Type	Enclosed Type Single Output
Output Power	25W
Series	LM25-23B
Part Number	LM25-23B12
Mechanical Form	Enclosed
IP Level	Non-Waterproof
Output Voltage	12V
Output Current	2.1A

Downloads

Datasheet - LM25-23B12

Additional Information

Device	Power Supply
Type	Small Outline \| Switch Mode

Discover the LM25-23B12, a compact and efficient switch mode power supply delivering 12VDC at 2.1A. With dual AC/DC input compatibility and high reliability, it's perfect for industrial, LED, and smart home applications. Enjoy low power consumption and robust protection features, ensuring your devices run smoothly and safely. Upgrade your projects with this versatile power solution today!
