LM50-20B15 - Power Supplies - LRS-50-15

LM50-20B15

SKU: LM50-20B15

BRAND: Mornsun


In Stock
R 369.84 (inc VAT)
R 321.60 (ex VAT)

Collections: Power

Type: Power Supplies

Category: Metal Case Power Supply, Switch Mode Power Supplies

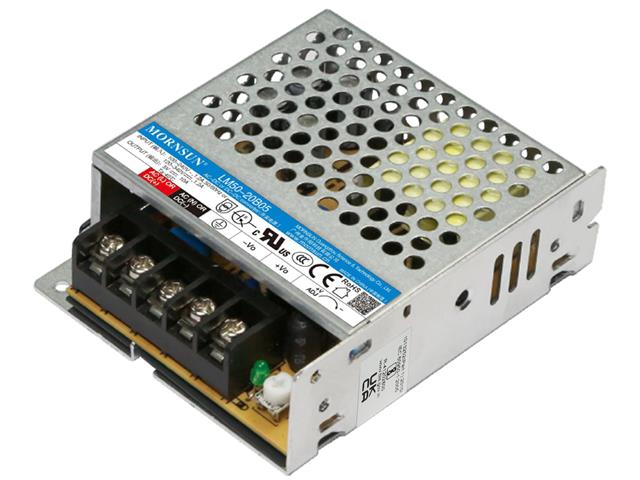

Metal Case Small Outline Switch Mode Power Supply Input: 85 ~ 305VAC/120 - 430VDC. Output 15VDC @ 3,4A. Terminal Block Term. 4KVAC Isolation (LRS-50-15)

Small Outline Switch Mode Power Supply

Overview

LM50-20Bxx series is one of Mornsun’s enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency, high reliability and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943, IEC/EN61558 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

Feature

  • Universal 85 - 264VAC or 120 - 370VDCinput voltage
  • Accepts AC or DC input (dual-use of sameterminal)
  • Operating ambient temperature range: -30℃to+70℃
  • Low standby power consumption, highefficiency
  • High I/O isolation test voltage up to 4000VAC
  • Low ripple & noise
  • Output short circuit, over-current, over-voltageprotection
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Operating altitude up to 5000m

Downloads

Additional Information

Device Power Supply
Type Small | Outline | Switch Mode
Size 99.00 x 82.00 x 30.00 mm
