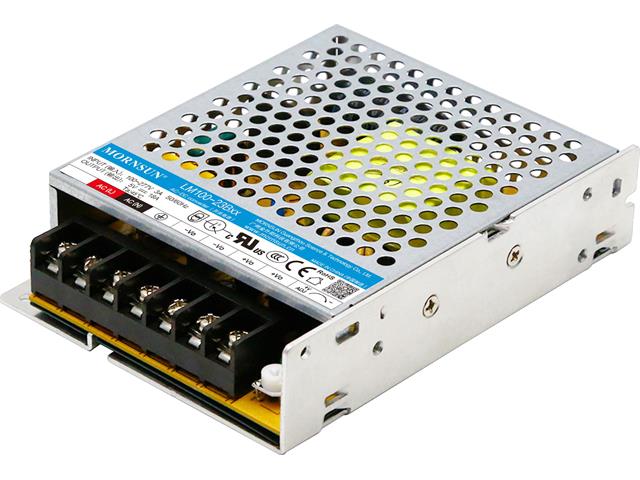

LM75-23B24

SKU: LM75-23B24

BRAND: Mornsun


Metal Case Small Outline Switch Mode Power Supply Input: 85 ~ 305VAC/120 - 430VDC. Output 24VDC @ 3,2A. Terminal Block Term. 4KVAC Isolation (LRS-75-24)

Small Outline Switch Mode Power Supply

Overview

LM75-23Bxx series is one of Mornsun’s enclosed AC-DC switching power supply. It features universal AC input and at the sametimeacceptsDC input voltage, cost-effective, low no load power consumption, high efficiency, high reliability and double or reinforcedinsulation. Theseconverters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, EN61558, GB4943standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart homeetc

Feature

  • Universal 85 - 305VAC or 120 - 430VDCInput voltage
  • Accepts AC or DC input (dual-use of sameterminal)
  • Operating ambient temperature range: -30℃to+70℃
  • Low standby power consumption, highefficiency
  • High I/O isolation test voltage up to 4000VAC
  • Low ripple & noise
  • Output short circuit, over-current, over-voltageprotection
  • Over-voltage class Ⅲ
  • Operating altitude up to 5000m

Downloads

Additional Information

Device Power Supply
Type Small | Outline | Switch Mode
Size 99.00 x 97.00 x 30.00 mm
