LO15-10B12

SKU: LO15-10B12

BRAND: Mornsun


Open Frame PCB Switch Mode Power Supply Input: 85 ~ 264 VAC/100 - 370 VDC. Output 12VDC @ 1,25A (EPS-15-12)

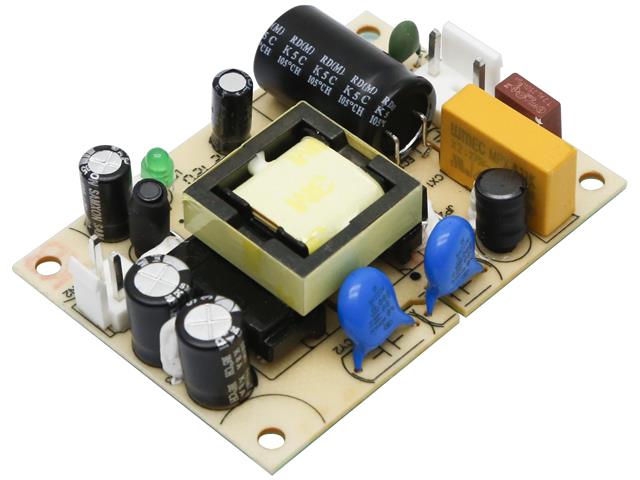

Open Frame PCB Switch Mode Power Supply

Feature

  • Universal 85-264VAC or 100-370VDC input voltage
  • 2.5×1.8 inch high power density
  • Operating ambient temperature range -25℃ to +70℃
  • Output short circuit, over-current & over-voltage protection
  • High efficiency, high reliability
  • Regulated output, low ripple & noise
  • EMI performance meets CISPR32/EN55032 CLASS B
  • 2 years warranty
  • Safety according to UL/EN60335

Downloads

Additional Information

Device Power Supply
Type Open Frame PCB | Switch Mode
Input Voltage 85 ~ 264 VAC/100 - 370 VDC
Output 12VDC @ 1,25A
Size 63.50 x 45.70 x 19.00 mm
