MDR-40-24

Name: MDR-40-24 - Communica [Part No: MDR-40-24]
Brand: Mean Well
SKU: MDR-40-24
Price: 529.45 ZAR
Availability: OutOfStock

SKU: MDR-40-24

BRAND: Mean Well

Sold Out
R 608.87_{(inc VAT)}
R 529.45_{(ex VAT)}

Collections: Power

Type: Power Supplies

Category: Din Rail Power Supply

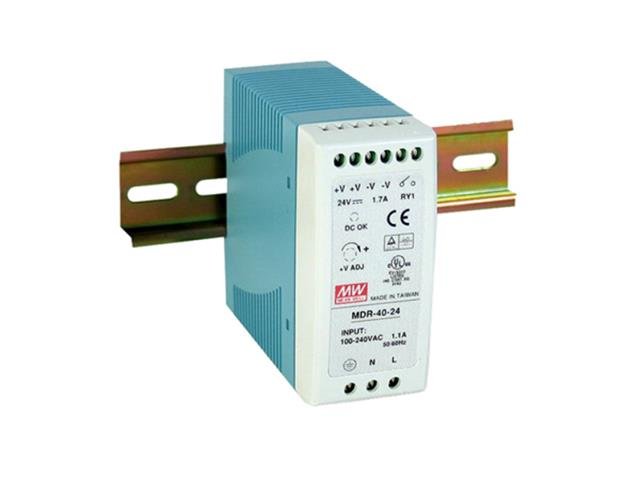

DIN Rail Plastic Case Slim Profile Switch Mode Power Supply Input: 85 ~ 264VAC/120 - 370VDC. Output 24VDC @ 1,7A - with DC OK Feature (DIN Rail Plastic 24V 1,7A)

Slim Profile Switch Mode Power Supply

Feature

Universal AC input/Full range
Protections: Short circuit/Overload/Over voltage
Cooling by free air convection
Can be installed on DIN Rail TS-35/7.5 or 15
DC OK relay contact
LED indicator for power-on
No load power consumption <0.75 W
100% full load burn-in test
3 years warranty
Class 1, Div 2 hazardous locations T4

Specifications

AC or DC Input Voltage : AC
AC or DC Output Voltage : DC
Input Voltage : 85 → 264V AC
Output Voltage : 24V DC
Output Current : 1.7A
Power Rating : 40W
Number of Outputs : 1
Electrical Phase : 1
Height : 100mm
Width : 40mm
Hazardous Area Certification : B, C, Class I Division 2 Group A, D Hazardous Location T4
Output Voltage Adjustment Range : 24 → 30V
Series : MDR
Depth : 90mm
Mounting Type : DIN Rail Mount
Standards Met : RoHS Compliant, TUV EN 60950-1, UL 508
Minimum Temperature : -20°C
Load Regulation : ±1%
Maximum Temperature : +70°C
Ripple And Noise : 150mV Pk-Pk

Downloads

Datasheet - MDR-40-24

Additional Information

Device	Power Supply
Type	Slim Profile \| Switch Mode
Highlights	DIN Rail Plastic 24V 1,7A
Output	24VDC @ 1,7A
Size	W-40 mm x H-90mm x D-100mm
