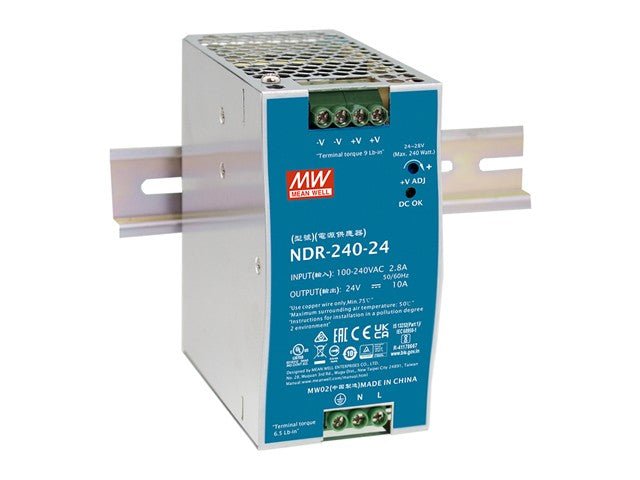

NDR - 240 - 24 - Power Supplies - 4711287422282

NDR-240-24

SKU: NDR-240-24

BRAND: Mean Well


In Stock
R 1,107.45 (inc VAT)
R 963.00 (ex VAT)

Collections: New Arrivals, Power

Type: Power Supplies

Category: Din Rail Power Supply, New

DIN Rail Metal Case Switch Mode Power Supply With Active PFC. Input: 90 ~ 264VAC/127 - 370VDC. Output 24VDC @ 10A. 3KVAC Isolation (LI240-10B24) (DIN Rail Metal 24V - 10A)

DIN Rail Metal Case Switch Mode Power Supply

Specifications

  • Model: NDR-240-24
  • Manufacturer: MEAN WELL
  • Series: NDR-240
  • Type: AC/DC DIN-Rail Switching Power Supply
  • Rated Power: 240 W
  • AC Input Voltage: 90 – 264 VAC
  • DC Input Voltage: 127 – 370 VDC
  • Input Frequency: 47 – 63 Hz
  • Output Voltage: 24 V DC
  • Output Voltage Adjustment Range: 24 – 28 V DC
  • Output Current: 10 A
  • Efficiency (Typical): 88.5 %
  • Inrush Current: Cold start ≤ 40 A
  • Ripple & Noise: ≤ 150 mVp-p
  • Protection Functions: Short circuit, overload, over-voltage, over-temperature
  • Cooling Method: Free air convection
  • Mounting Type: DIN Rail TS-35 (7.5 / 15 mm)
  • Operating Temperature: –20 °C to +70 °C (with derating above 50 °C)
  • Operating Humidity: 20 – 90 % RH (non-condensing)
  • Isolation Voltage: 3 kVAC (Input to Output)
  • Withstand Voltage: 2 kVAC (Input to Ground), 1 kVAC (Output to Ground)
  • Dimensions (W × H × D): 63 × 125.2 × 113.5 mm
  • Weight : Approx. 1.2 kg
  • Housing: Metal
  • Safety Standards: UL508, EN60950-1, EN62368-1
  • EMC Standards: EN55032, EN61000-3-2, EN61000-6-2 / 6-4
  • Warranty: 3 Years

Downloads

Additional Information

Device Power Supply
Type DIN | Rail | Metal | Case | Switch | Mode | Power | Supply
