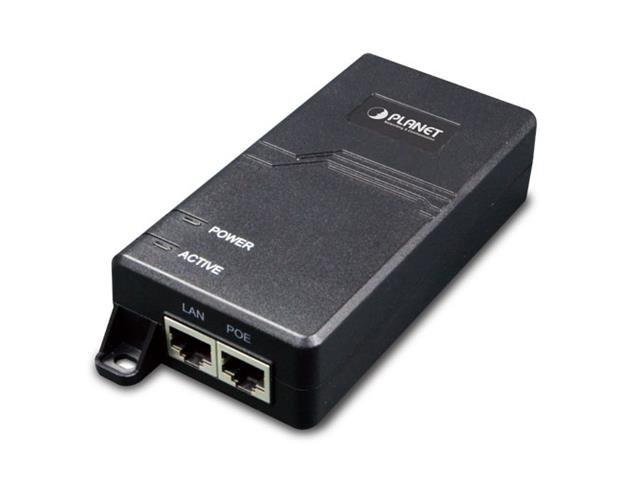

POE-172

Interface

• 2 x RJ45 interfaces

  • 1-port 10/100/1000Mbps Data + Power output
  • 1-port 10/100/1000Mbps Data input
• 1 x AC 100-240V input power socket

Power over Ethernet

• Ultra Power over Ethernet PSE
• Up to 60 watts of power on 4-pair UTP
• Backward compatible with IEEE 802.3at/af PD device
• Auto-detection of PoE IEEE 802.3at/af equipment and devices to check whether there’s any damage done via incorrect installation
• Remote power feeding up to 100m

Hardware

• All-in-one compact size design
• Internal power supply
• LED indicators for Power LED and Active LED (PoE ready/in-use)

1. Datasheet - POE-172
