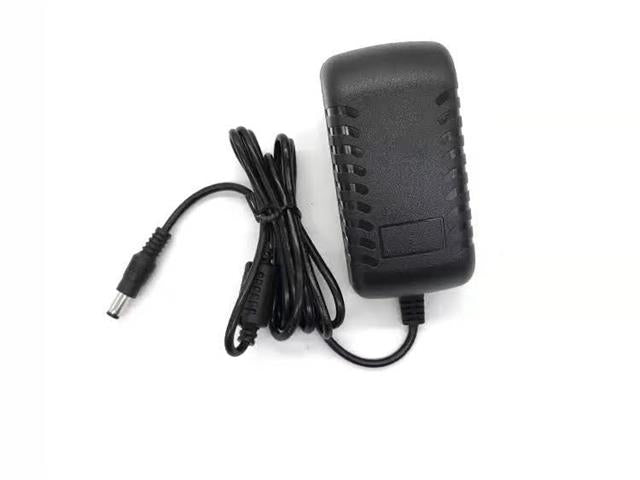

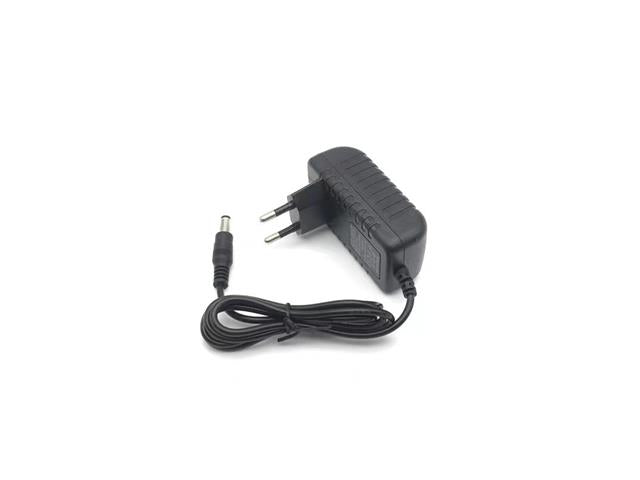

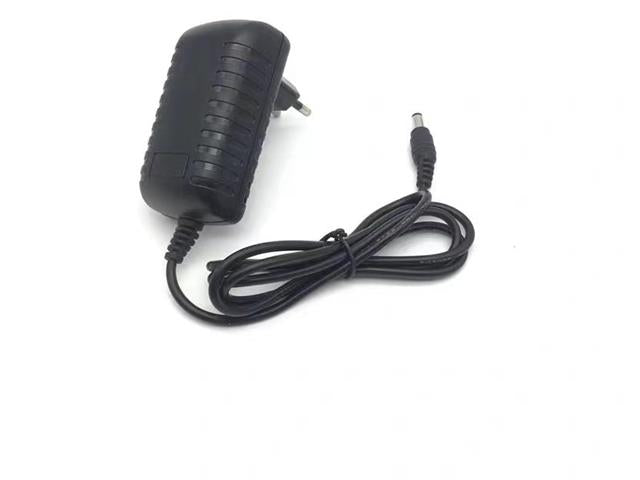

PSU SWM 5V 1A SMF

SKU: PSU SWM 5V 1A SMF

BRAND: Communica


Regulated Ac Adapter. Input 100 – 240VAC (2 Pin EU Plug). Output 5VDC, 1 A (5.5x2.1mm Centre-Positive Barrel Jack). Cord Length 1.2m

Regulated AC Adapter

Feature

  • This is a 5V 1A power adapter with an ac input & dc output.
  • Input: 100 to 240Vac (2 pin EU plug)
  • Output: 5Vdc, 1A (5.5x2.1mm centre-positive barrel jack)

Specifications

INPUT

  • Plug type : Two pin EU plug
  • Input voltage rating : 100Vac to 240Vac
  • Input voltage range : 90Vac to 270Vac
  • Input frequency range : 47Hz to 63Hz
  • Maximum inrush current
    • 30A for 100Vac @ full load
    • 75A for 240Vac @ full load
  • Input current : 0.1A max @ 90V/60Hz full load
  • Standby power load : 0.1W max @ 254V/50Hz no load

OUTPUT

  • Plug type : 5.5x2.1mm centre-positive barrel jack
  • Cord length : 1.2m
  • Output voltage : +5V
  • Output voltage tolerance : +/- 0.6V
  • Min load current : 0mA
  • Max load current : 1A
  • Line regulation +/- 1%
  • Load regulation +/- 5%
  • Ripple and noise : 150mV p-p



Downloads

Additional Information

Device Adapter
Type Regulated | AC
