REN-860006

SKU: REN-860006

BRAND: Renusol

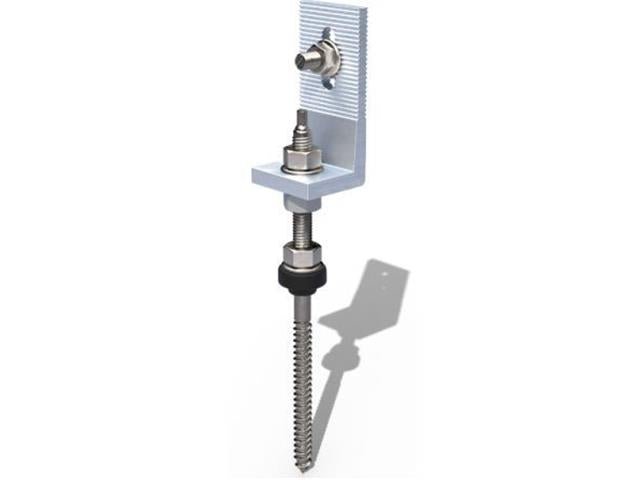

Renusol Variosole Hanger Bolt M10x200 Wood Substructure

Variosole Hanger Bolt

Specifications

Technical Data:

  • Material: stainless steel
  • A2 Diameter of sealing collar: 25 mm
  • Sealing integrated: Yes
  • Thread Diameter: M10; 9.0mm
  • Thread: Partial thread
  • Thread applicable for: Wood; Metric
  • Thread length: 65.0 mm
  • Head of screw = Hexagon head
  • Minimum screw penetration = 60 mm
  • Screw tip = Wood top Space for adjustment vertical = 81,00 mm
  • Assembly without pre-drilling = 7,0 mm
  • Compatible with product groups = VarioSole
  • TriSole Material = Stainless steel
  • Aluminum   Other Contents:
    • 1 x 900008 Hanger bolt M10 x 200
    • 1 x 900007 Hammerhead bolt M8x25
    • 1 x 900001 Hexag. nut DIN6923 - M8 A2-70 with FL & SZ
    • 1 x 400014 Standard Bracket M10

Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system.

Downloads

Additional Information

Device Bolt
Type Variosole | Hanger
