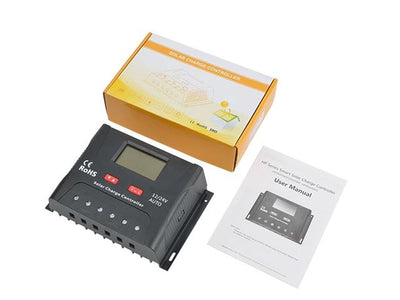

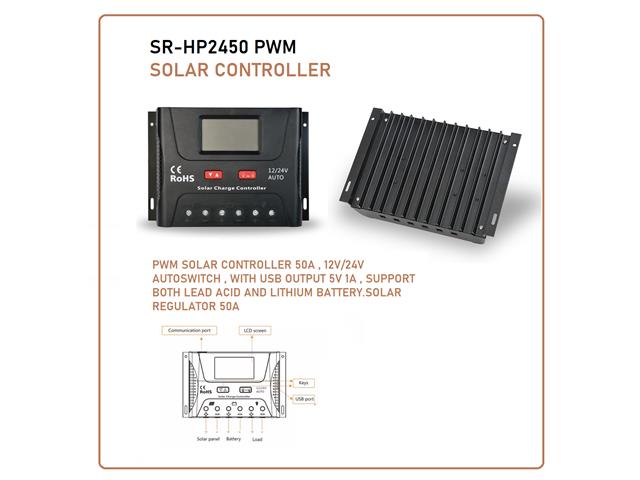

PWM Solar Controller 50A, 12V/24V Autoswitch, with USB Output 5V 1A, Support both Lead Acid and Lithium Battery. Solar Regulator 50A
PWM Solar Controller 50A
Specifications
- Rated current : 50A
- System voltage Automatic recognition of : 12V/24V
- Rated power
- No-load loss : < 13mA/12V;< 15mA/24V
- Max. Solar energy input voltage : <55
- Max. voltage at the battery end : <34V
- Overvoltage protection : 16.0V
- Charging recovery voltage : 13.2V
- Over-discharge recovery voltage : 12.5V(settable with the keys)
- Over-discharge voltage 11.0V(settable with the keys) Boost charging time : 2H
- Temperature compensation : -3.0mV/°C/2V
- Light control voltage : Light control on 5V, light control off 6 V (light control on plus 1 V)
- Light control judgment time : 10 minutes
- USB function : NO
- Operating temperature : -25°C~+55°C
- IP protection degree : IP30
- Net weight : 650g
Protection functions
Battery reverse connection protection, solar panel reverse connection
protection Notice 1, reverse charging protection at night ,Charging
overload protection, overcurrent protection , short circuit protection
- Dimensions : 189.27×127.2×54.0 (mm)
Downloads
Additional Information
Device |
Solar Controller |
Type |
PWM | 50A |
