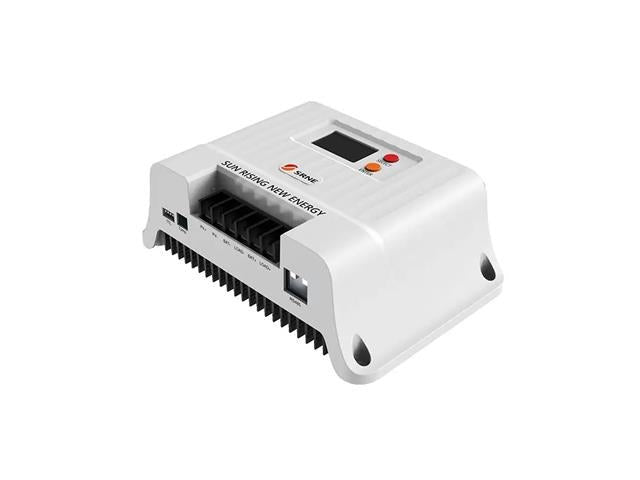

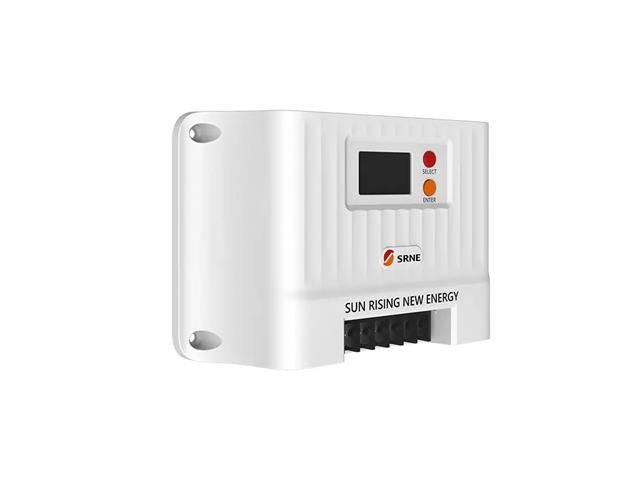

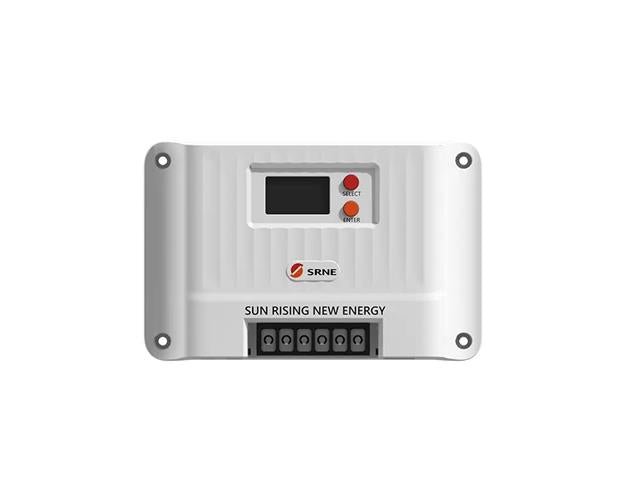

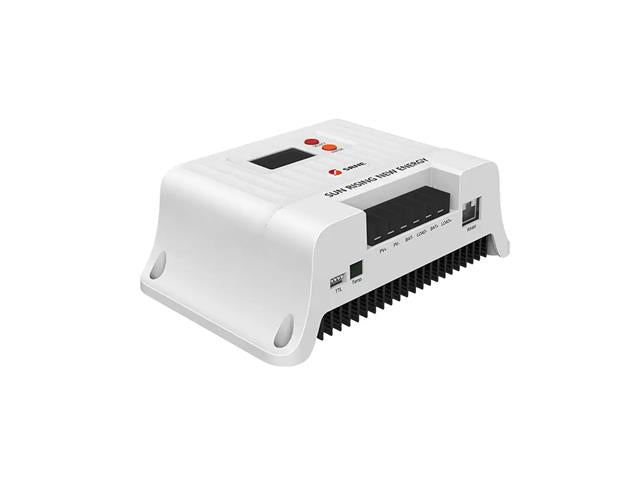

MPPT High Efficiency Solar Charge Controller, 30A(400W/12V, 800W/24V), 12V/24V, Maximum Input Voltage:100V. Supports Bluetooth with Mobile APP
MPPT High Efficiency Solar Charge Controller
Feature
- 32-bit high-speed master control chip.
- Large-screen LCD for display, charge and discharge parameters adjustable, Allow selection of multiple battery types, with a flexibility to set the load to work during the day or night.
- Complete multi-stage PWM charge management.
- Build-in reverse connection protection, open-circuit protection, high temperature protection, over-current/short-circuit protection (optional), which are all self-recovery type, with no damage to controller.
- Double MOS anti-backflow circuit, ultra-low heat generation
- Lithium battery activation available
- Dual USB output, maximum current up to 2A, supporting high current charging of Iphone, Ipad and Android mobile phones and other devices
- Adopt MPPT with tracking effificiency up to 99.9%.
- Support full-power charging and discharging at one time.
- Support multiple battery types such as sealed battery, gel battery, flflooded battery, lithium battery and user-defifined battery.
- Support lithium battery and lead-acid activated battery.
- Support the charging current setting.
- Support full-charging setting.
- Support temperature compensation.
- Support 17 load operating modes.
- Support capacitive loads and inductive loads.
- Save historical data for 300 consecutive days.
- Support RS485 communication of standard Modbus protocol with adjustable baud rate.
- Support TTL communication of standard Modbus protocol with fifixed baud rate.
- Support Bluetooth communication (optional).
- Support CAN communication (optional).
- Possess complete charging and discharging protection mechanisms for overvoltage, overcurrent, overload, over-temperature, short circuit, etc.

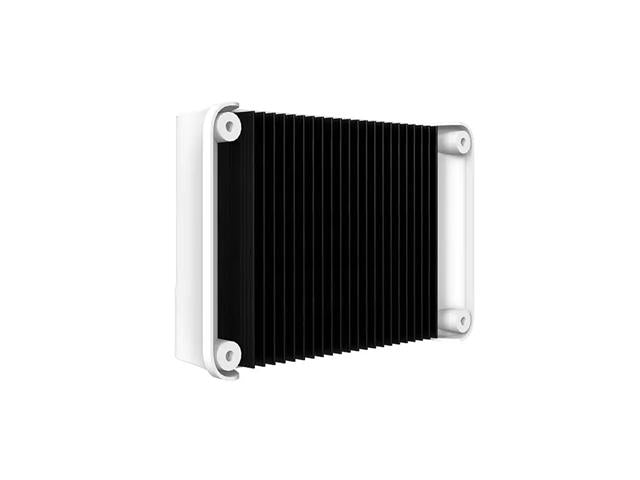

- Adopt high-quality aluminum radiator and high-temperature derating treatment to ensure reliable and effificient operation in various operating conditions.
Downloads
Additional Information
| Device |
Solar Charge Controller |
| Type |
MPPT | High Efficiency |
