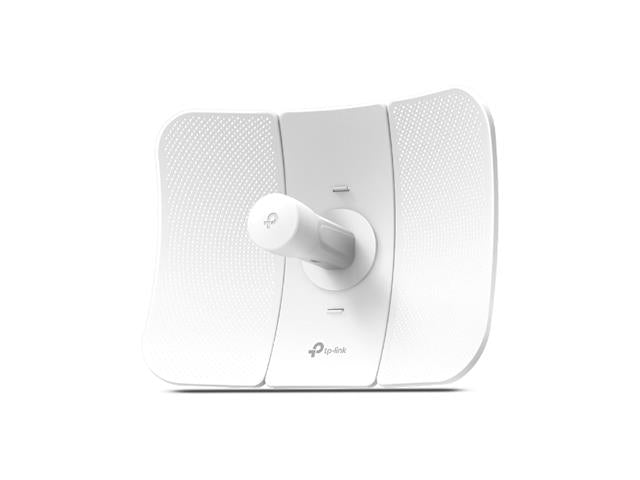

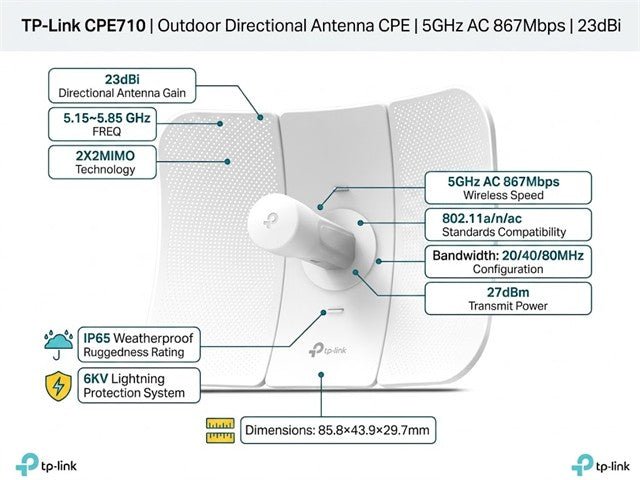

Outdoor Directional Antenna CPE 5GHz AC 867Mbps 23dBi, 2X2MIMO, 802.11a/n/ac, IP65, Bandwidth:20/40/80MHz, 6KV Lightning Protection, 27dBm, FREQ: 5.15~5.85 GHz, (85.8×43.9×29.7mm)
Outdoor Directional Antenna
Specifications
Hardware Features
- Processor : Qualcomm 750MHz CPU, MIPS 74Kc
- Memory : 128 MB DDR2 RAM, 16 MB Flash
- Interface :
- 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
- 1 Reset Button
- Power Supply :
- Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
- Voltage range: 16-27V DC
- Dimensions ( W x D x H ) : 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
- Antenna Gain : 23 dBi
- Antenna Beamwidth : 9° (Azimuth)/7° (Elevation)
- Protection :
- 15 KV ESD Protection
- 6 KV Lightning Protection
- Enclosure :
- Material: Outdoor PC stabilized plastic
- Weatherproof: IP65 water and dust proof design
Wireless Features
- Wireless Standards : IEEE 802.11a/n/ac
- Wireless Speeds :
- Up to 867 Mbps (80 MHz, Dynamic)
- Up to 400 Mbps (40 MHz, Dynamic)
- Up to 173.4 Mbps (20 MHz, Dynamic)
- Frequency : 5.15~5.85 GHz
- Transmit Power : Max. 27 dBm (Adjustable power by 1dBm)
Software Features
- Network Configuration :
- WAN: Static/ Dynamic/ PPPoE
- LAN: Static/ Dynamic/ DHCP
- Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
- Security: SPI Firewall/ Ping Forbidden/ DoS Protection
- Access Control
- Static Routing
- Bandwidth Control
- IP & MAC Binding
- Wireless Configurations
- Selectable Channel Width: 20/40/80MHz
- Auto Channel Selection
- Transmit Power Control
- Dynamic Frequency Selection(DFS)
- WDS Enable/ Disable
- Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
- SSID Broadcast Enable/ Disable
- Multi-SSID with VLAN Tagging(AP Mode only)
- Distance/ ACK Timeout Setting
- Wireless MAC Address Filter
- Wireless Advanced:
- Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia
- Long Range PtP
- Management :
- Discovery and Remote Management via Pharos Control application
- HTTP/ HTTPS Web-based management
- System log
- SNMP Agent(v2c)
- Ping Watch Dog
- Dynamic DDNS
- SSH Server
- System Tools :
- Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory
- Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP
- Spectrum Analyzer
- Speed Test
- Ping
- Traceroute
- Antenna Alignment
- System-level Optimizations : Optimized IGMP Snooping / Proxy for multicast applications
POE Adapter Features
- Dimensions(W x D x H) : 85.8×43.9×29.7 mm
- Interfaces :
- 1 AC Jack with Earth Ground
- 1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
- 1× 10/100/1000 Mbps Shielded Ethernet Port (Data)
- Button Remote Reset Button
- Power Status LEDs : Green
- Input : 100-240VAC, 50/60Hz
- Output :
- 24VDC, 0.5A Max
- +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
- Efficiency : >84.29%
- Certifications : CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Others
- Certification : CE, FCC, RoHS, IP65, IC
- Package Contents :
- Outdoor Wireless CPE
- 24V 0.5A Passive PoE Adapter
- Pole Mounting Kits
- AC Power Cord
- Installation Guide
- System Requirements :
- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
- Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
- Environment :
- Operating Temperature: -40°C~70°C (-40°F~158°F)
- Storage Temperature: -40°C~70°C (-40°F~158°F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~95% non-condensing
Downloads
Additional Information
| Device |
Antenna |
| Type |
Outdoor | Directional |
