TP-LINK EAP245

SKU: TP-LINK EAP245

BRAND: TP-Link

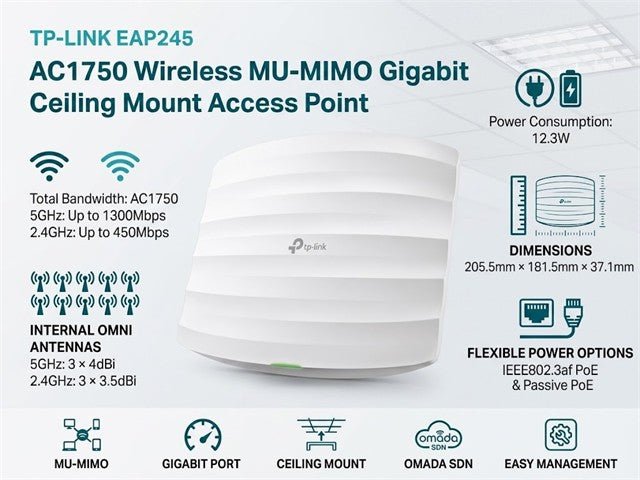

TP-LINK AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point, Signal Rate : 5GHz:Up to 1300Mbps ~ 2.4GHz:Up to 450Mbps, 12.3W, {205.5×181.5×37.1mm}, Antenna Type : Internal Omni 2.4GHz: 3* 3.5dBi , 5GHz: 3*4dBi, IEEE802.3af PoE and Passive PoE

MU-MIMO Gigabit Ceiling Mount Access Point

Specifications

HARDWARE FEATURES

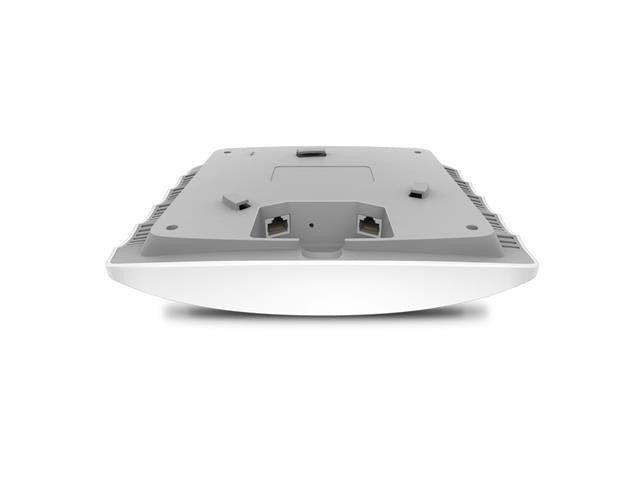

Interface 2 × Gigabit Ethernet (RJ-45) Port (One port supports IEEE802.3af PoE and Passive PoE)
Physical Security Lock Yes
Button Reset
Power Supply 802.3af/A PoE
48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption 12.3 W
Dimensions ( W x D x H ) 8.1 × 7.1 × 1.5 in. (205.5 × 181.5 × 37.1 mm)
Antenna Type Internal Omni
2.4GHz: 3* 3.5dBi
5GHz: 3*4dBi
Mounting Ceiling /Wall Mounting (Kits included)
Hardware Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/g/b/a
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz:Up to 1300Mbps
2.4GHz:Up to 450Mbps
Wireless Functions Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Seamless Roaming
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
Transmission Power CE:
≤20dBm(2.4GHz)
≤23dBm(5GHz)
FCC:
≤24dBm(2.4GHz)
≤24dBm(5GHz)
MANAGEMENT
Omada App Yes
Centralized Management Omada Software Controller
OC200
Cloud Access Yes (Through Omada Software Controller or OC200)
EAP Controller Software Yes
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP Yes
System Logging Local/Remote Syslog Local/Remote Syslog
Telnet Yes
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245
Gigabit Passive PoE Adapter
Power Cord
Mounting Kits
Installation Guide

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Downloads

Additional Information

Device Access Point
Type MU-MIMO | Gigabit | Ceiling Mount
