TP-LINK RE205

SKU: TP-LINK RE205

BRAND: TP-Link


TP-LINK RE205 (AC750) WiFi Range Extender 1x10/100M Ethernet Port (RJ45), 7.3W, 2 x External Antennas, Freq: 2.4GHz & 5GHz(11ac), Wireless Modes : 2.4G/5G Wi-Fi Band

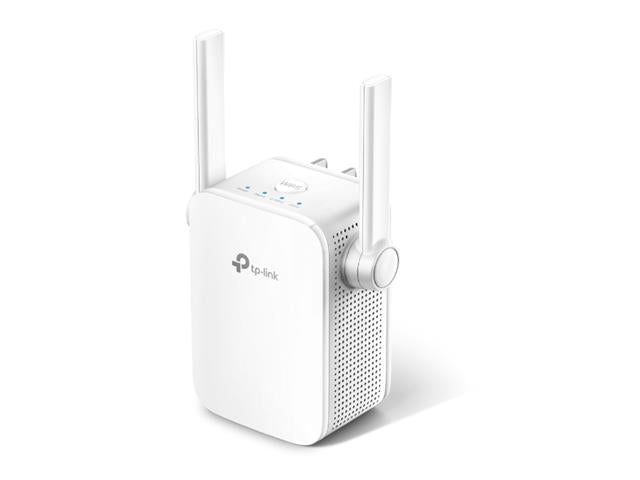

RE205 (AC750) WiFi Range Extender

Features

  • Brings Wi-Fi dead zones to life with strong Wi-Fi expansion at a combined speed of up to 750Mbps*
  • Operates over both 2.4GHz band(300Mbps) and 5GHz bands(433Mbps) for a more stable wireless experience
  • Intelligent signal light helps to fi­nd the best location for optimal Wi-Fi coverage by showing the signal strength
  • Works with any Wi-Fi router or wireless access point**

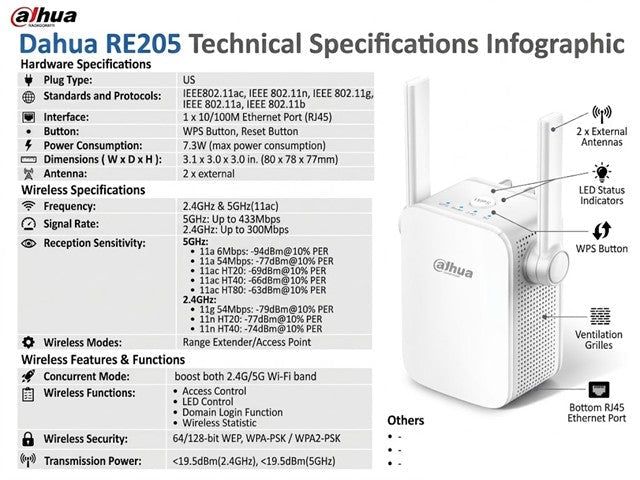

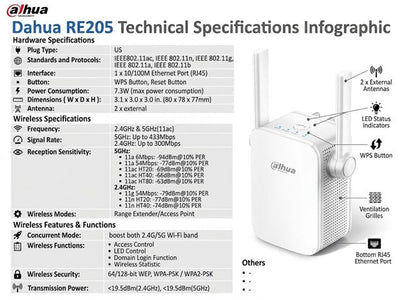

Specifications

Hardware Features

  • Plug Type : US
  • Standards and Protocols : IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b
  • Interface : 1 x 10/100M Ethernet Port (RJ45)
  • Button : WPS Button, Reset Button
  • Power Consumption : 7.3W (max power consumption)
  • Dimensions ( W x D x H ) : 3.1 x 3.0 x 3.0 in. (80 x 78 x 77mm)
  • Antenna : 2 x external
  • Wireless Features

  • Frequency : 2.4GHz & 5GHz(11ac)
  • Signal Rate
    • 5GHz:Up to 433Mbps
    • 2.4GHz:Up to 300Mpbs
  • Reception Sensitivity
    • 5GHz:
    • 11a 6Mbps: -94dBm@10% PER
    • 11a 54Mbps: -77dBm@10% PER
    • 11ac HT20: -69dBm@10% PER
    • 11ac HT40: -66dBm@10% PER
    • 11ac HT80: -63dBm@10% PER
    • 2.4GHz
    • 11g 54Mbps: -79dBm@10% PER
    • 11n HT20: -77dBm@10% PER
    • 11n HT40: -74dBm@10% PER
  • Wireless Modes
    • Range Extender/Access Point
    • Wireless Statistic
    • Concurrent Mode boost both 2.4G/5G Wi-Fi band
  • Wireless Functions
    • Wireless Statistic
    • Concurrent Mode boost both 2.4G/5G Wi-Fi band
    • Access Control
    • LED Control
    • Domain Login Function
  • Wireless Security
    • 64/128-bit WEP
    • WPA-PSK / WPA2-PSK
  • Transmission Power :
    • <19.5dBm(2.4GHz)
    • <19.5dBm(5GHz)

    Others

  • Certification : FCC, RoHS
  • Package Contents : AC750 Wi-Fi Range Extender RE205, Quick Installation Guide
  • Box Dimensions (W X D X H) : 6.15 x 4 x 3.7 in. (156.5 x 101.5 x 95mm)
  • System Requirements : Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
  • Environment
    • Operating Temperature: 0°C~40°C (32°F~104°F)
    • Storage Temperature: -40°C~70°C (-40°F~158°F)
    • Operating Humidity: 10%~90% non-condensing
    • Storage Humidity: 5%~90% non-condensing

Additional Information

Device WiFi Range Extender
Type RE205 | AC750

-->
