TP-LINK SG1005P

SKU: TP-LINK SG1005P

BRAND: TP-Link


TP-LINK 5 Port 10/100/1000Mbps Desktop Switch with 4 Port PoE, Auto MDI/MDIX, (99.8x98x25mm), Unmanaged

5 Port Desktop Switch

Overview

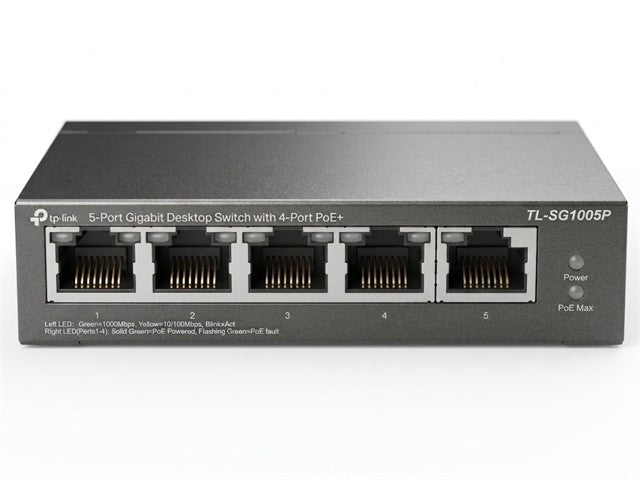

TL-SG1005P is a 5 10/100/1000Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Features

  • 5 10/100/1000Mbps RJ45 ports
  • With four PoE ports, transfers data and power on one single cable
  • Working with IEEE 802.3af compliant PDs, expands home and office network
  • Supports PoE Power up to 15.4W for each PoE port
  • Supports PoE Power up to 56W for all PoE ports
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Plug and play, no configuration and installation required

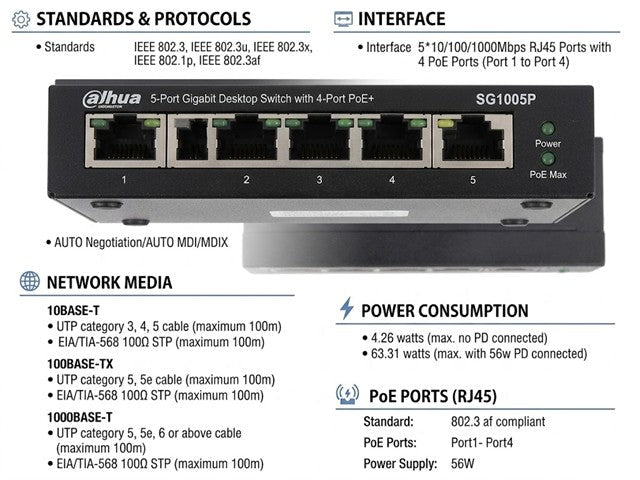

Specifications

  • Standards : IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af
  • Interface
    • 5*10/100/1000Mbps RJ45 Ports with 4 PoE Ports (Port 1 to Port 4)
    • AUTO Negotiation/AUTO MDI/MDIX
  • Network Media
    • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
    • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
    • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
    • Power Consumption 4.26 watts (max. no PD connected)
    • 63.31 watts (max. with 56w PD connected)
  • PoE Ports (RJ45)
    • Standard: 802.3 af compliant
    • PoE Ports: Port1- Port4
    • Power Supply: 56W
  • Transmission Method : Store-And-Forward
  • Switching Capacity : 10Gbps
  • Mac Address Table : 2K
  • Fan Quantity : Fanless
  • External Power Supply : External Power Adapter(Output: 48VDC / 1.25A)
  • LED : Power, Link/Act, PoE Status, PoE Max
  • Dimensions ( W x D x H ) : 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
  • Certification : FCC, CE, RoHS
  • Package Contents : TL-SG1005P, Power Adapter, User Guide

Environment

  • Operating Temperature: 0°C~40°C (32°F~104°F)
  • Storage Temperature: -40°C~70°C (-40°F~158°F)
  • Operating Humidity: 10% ~ 90%RH, non-condensing
  • Storage Humidity: 5%~90%RH, non-condensing

Additional Information

Device Switch
Type 5 Port | Desktop
