TP-LINK 8 Port 10/100/1000Mbps Desktop Switch, Lug & Play, Auto Negotiation RJ45 Ports, Supports MDI/MDIX
8 Port 10/100/1000Mbps Desktop Switch
Overview
The TL-SG1008D Gigabit Desktop Switch provides you an easy way to upgrade your network to 1000Mbps
network. Since all ports supports auto MDI/MDIX, there’s no need to worry about the cable type to
use. Moreover, with the innovative energy-efficient technology, TL-SG1008D can save up to 80% of the power
consumption, making it an eco-friendly solution for your business network.
Features
- 8 10/100/1000 Mbps Ethernet ports
- Innovative energy-ecient technology
- Supports IEEE 802.3x ow control for Full Duplex mode and backpressure for Half Duplex mode
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
- Auto-MDI/MDIX eliminates the need for crossover cables
- 15KByte Jumbo frame improves performance of large data transfers
- Desktop or wall-mounting design
- Plug and Play design simplies installation

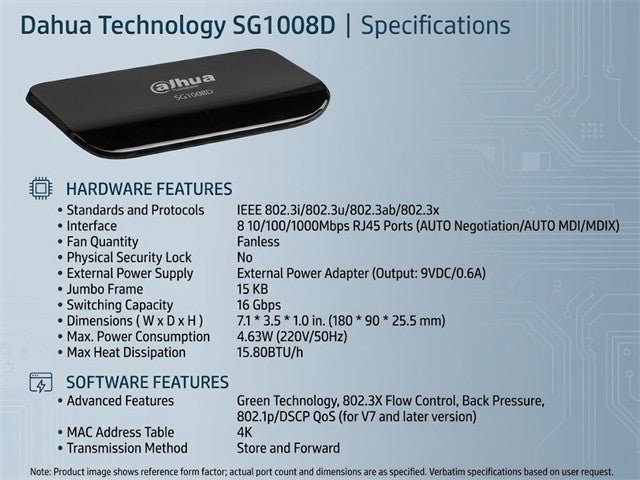

Specifications
|
HARDWARE FEATURES
|
| Standards and Protocols |
IEEE 802.3i/802.3u/ 802.3ab/802.3x |
| Interface |
8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX |
| Fan Quantity |
Fanless |
| Physical Security Lock |
No |
| External Power Supply |
External Power Adapter (Output: 9VDC/0.6A) |
| Jumbo Frame |
15 KB |
| Switching Capacity |
16 Gbps |
| Dimensions ( W x D x H ) |
7.1 * 3.5 * 1.0 in. (180 * 90 * 25.5 mm) |
| Max. Power Consumption |
4.63W(220V/50Hz) |
| Max Heat Dissipation |
15.80BTU/h |
|
SOFTWARE FEATURES
|
| Advanced Features |
Green Technology
802.3X Flow Control
Back Pressure
802.1p/DSCP QoS (for V7 and later version) |
| MAC Address Table |
4K |
| Transmission Method |
Store and Forward |
|
OTHERS
|
| Certification |
FCC, CE, RoHs |
| Package Content |
8-Port Gigabit Desktop Switch TL-SG1008D
Power Adapter
Installation Guide |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
Downloads
Additional Information
| Device |
Switch |
| Type |
8 Port | 10/100/1000Mbps | Desktop |
Upgrade your network effortlessly with the TP-LINK SG1008D 8-Port Gigabit Switch. Enjoy lightning-fast speeds of up to 1000Mbps and energy-efficient technology that saves you up to 80% on power. With its plug-and-play design and auto-MDI/MDIX support, installation is a breeze, making it the perfect eco-friendly choice for your home or business network.
