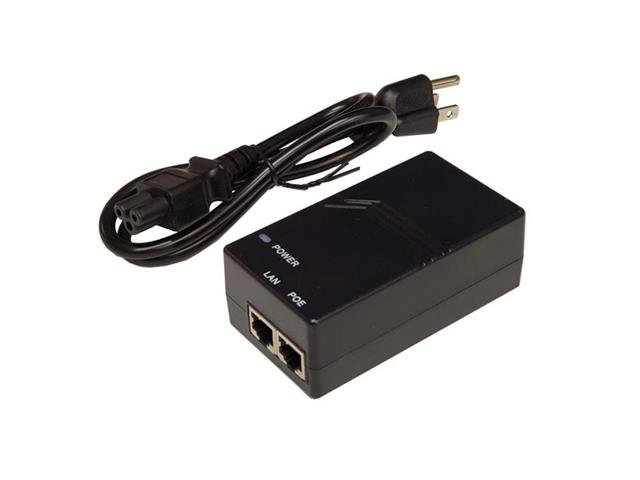

TP-POE-24

SKU: TP-POE-24

BRAND: Tycon Power


100-240VAC Input, 24V 19W Passive PoE Inserter, PoE Pinout: 4,5V+; 7,8V-, UL1950, Shielded and Surge Protected.

24V 19W Passive PoE Inserter

Specifications

  • AC Input Voltage : 100-240VAC 50/60Hz
  • Output PoE Voltage : 24VDC +/-5% Passive PoE, Mode B (Pins 4,5+ 7,8-)
  • Maximum Load : 0.5A(12W) Max
  • Protections : Short Circuit, Overcurrent, Surge/ESD (10kV)
  • Efficiency : 83% Minimum
  • Ripple and Noise : 200mV p-p
  • Data Rate : 10/100Mbps
  • No Load Consumption : 0.1W Max
  • Operating Temperature : -20 to +50°C
  • Storage Temperature : -30 to +70°C
  • Operating Humidity : 5% to 90% non condensing
  • Size (L x W x H) : 3.65 x 1.1 x 1.8” (93 x 30 x 47mm)
  • Weight : 3oz (87g)
  • MTBF : 30,000 Hrs
  • Certifications : UL, CE, FCC | IEC 60065, IEC60950, UL60950-1, EN55022, EN55013, EN55024, EN55020, EN61000-4-5, EN61000-4-4, EN61000-4-5
  • Connectors : RJ45 Shielded Jacks
  • Ethernet Cable Compatibility : CAT5 (or higher)

Additional Information

Device PoE Inserter
Type 24V | 19W | Passive
