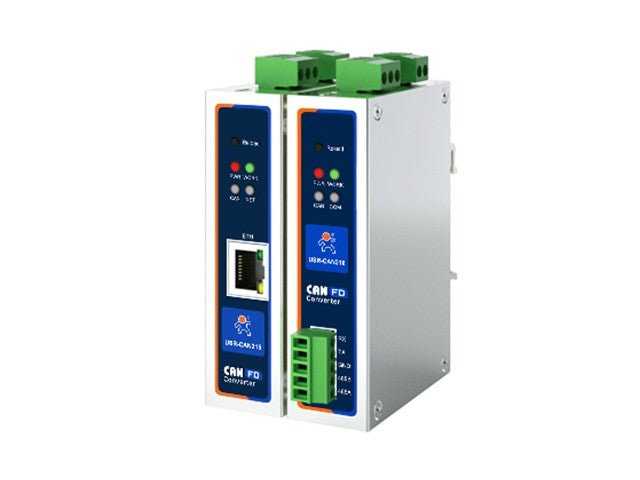

| Basic parameters |
| Operating voltage |
DC 9～36V (12V 1A recommended) |

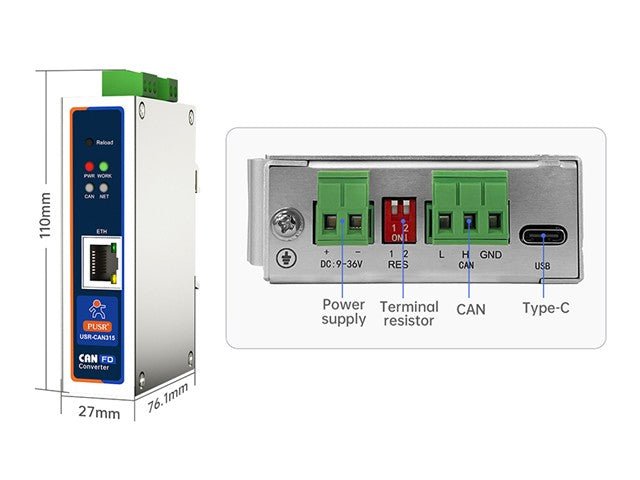

| Dimensions |
110 × 27 × 76.1 mm |
| Installation method |
DIN rail mounting |
| Factory reset |
Long press the RESET button |
| Signal diodes |
POWER, WORK, NET, CAN |

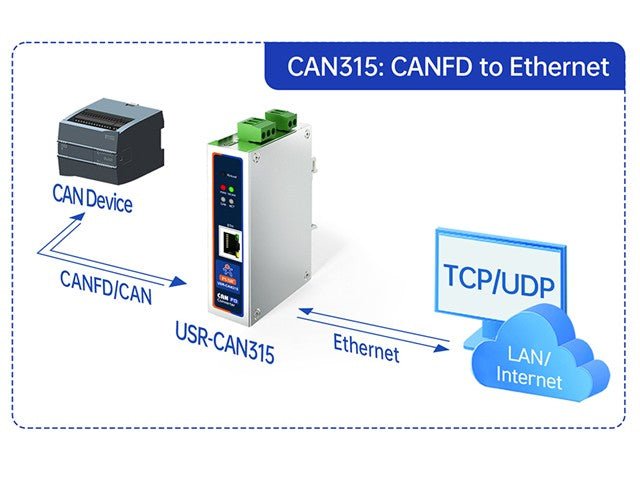

| Interface parameters |
| CAN port |
1 × CAN, support CAN FD, compatible with CAN 2.0A/2.0B |
| CAN transmission speed |
Arbitration: 5K~1Mbps; Data: 100K~5Mbps |
| Terminal resistor |
Built-in 2 × 120 Ω CAN bus resistor |
| Network port |
RJ45 10/100 Mbps, automatic cross-connect adaptation |
| Work environment |
| Operating temperature |
-40 ~ 85 ℃ |
| Storage temperature |
-40 ~ 105 ℃ |
| Working humidity |
5% ~ 95% RH (non-condensing) |
| Storage humidity |
5% ~ 95% RH (non-condensing) |
| Software Features |
| Network protocols |
TCP Server, TCP Client, UDP Server, UDP Client |

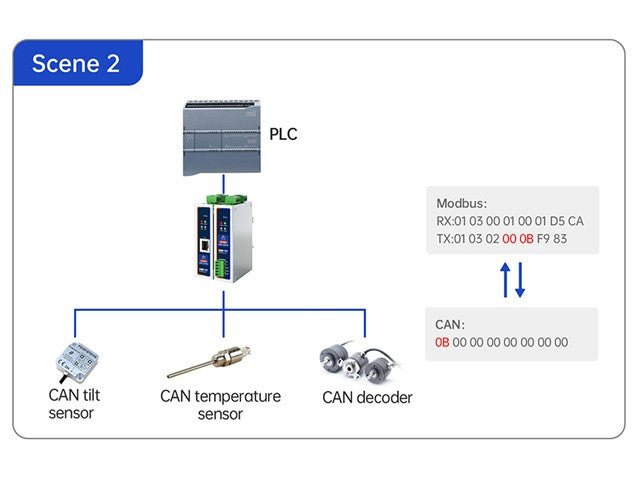

| Modbus gateway |
CAN(FD) ↔ Modbus TCP (Master/Slave) |
| Broadcast News |
Up to 64 broadcast messages |
| Receiving messages |
Supports 64 incoming messages |
| Protocol conversion modes |
5 protocol conversion modes |
| CAN ID support |
Support for standard and extended frames |
| Frame ID Filtering |
Supports only standard frames, only remote frames and own frames (≤ 32 groups) |
| Frame Packing |
Determining the number and timing of frame packets |
| Transmission direction |
Bidirectional; Network only → CAN; CAN only → Network |
| Firmware update |
Support for updates via PC software |
| Parameter configuration |
AT Commands and Computer Software |
| Other functions |
Support for heartbeat and registration packets; normal, loopback, and listening modes |
| Protection parameters |
| ESD protection |
Air discharge: 8 kV; contact: 6 kV |
| EFT/Burst Protection |
Power supply circuit: 2 kV; network port and CAN port: 1 kV |
| Surge resistance |
Power supply circuit: 1 kV (differential), 2 kV (common); CAN port: 2 kV (common); network port: 1 kV |
