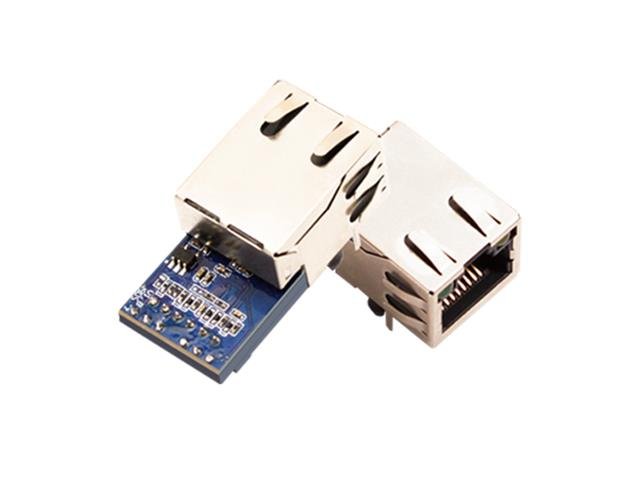

USR K7 ETHERNET TO SERIAL MODULE

Name: USR K7 ETHERNET TO SERIAL MODULE - Communica [Part No: USR K7 ETHERNET TO SERIAL MODULE]
Brand: UsrIoT
SKU: USR K7 ETHERNET TO SERIAL MODULE
Price: 440 ZAR
Availability: InStock

SKU: USR K7 ETHERNET TO SERIAL MODULE

BRAND: UsrIoT

In Stock
R 506.00_{(inc VAT)}
R 440.00_{(ex VAT)}

Collections: Computing & Peripherals

Type: Industrial IoT Wi-fi Solutions

Category: Ethernet to Serial Module

An Industrial Grade Ethernet Module Which Quickly Realizes Bi-directional Data Transmission (Stable And Reliable). The Module Has Been Tested For A Long Time At - 40 To 85 C And A 7* 24 Hours Stability Pressure Test.

Industrial Grade Ethernet Module

Specifications

Item	Parameter	Value
Hardware	Work Voltage	DC 3.0～3.6 V，（3.3V best choice)
	Work Current	130mA@3.3V
	Ethernet	RJ45、10/100Mbps; Auto switch between cross and direct connection
	Package type	Pin-in package
	Baud Rate	600～1M（bps）
Software	Network Protocol	IP、TCP、UDP、DHCP、DNS、https、ARP、ICMP、Web socket
	IP	Static IP or DHCP
	DNS	Supports
	Configure	Setup software, Web-page configuration, AT command
	Work Modem	TCP Server/TCP Client/UDP Server/UDP Client
	Modbus	Modbus Gateway: Modbus RTU to TCP, Modbus Polling
	Web to Serial	Web socket: Web to serial
	httpsd Client	Supports
	Class RFC2217	Supports
	Customized Webpage	Supports
	Web Cache	Send：16Kbyte；Receive：16Kbyte；
	Serial Port Cache	Send：2Kbyte；Receive：2Kbyte；
	Average latency	On Lan , the time<10ms
	Software	Setup Software, Virtual COM software
Others	Certificate	/
	Protection	1.5KV Electromagnetic isolation
	Size	35.0x19.39x18.25 mm(LWH)
	Work Temp	-40～85℃
	Storage Temp	-40～105℃
	Work Humidity	5%～95% RH
	Storage Humidity	5%～95% RH

Downloads

Additional Information

Device	Ethernet Module
Type	Industrial \| Grade \| Ethernet \| Module
