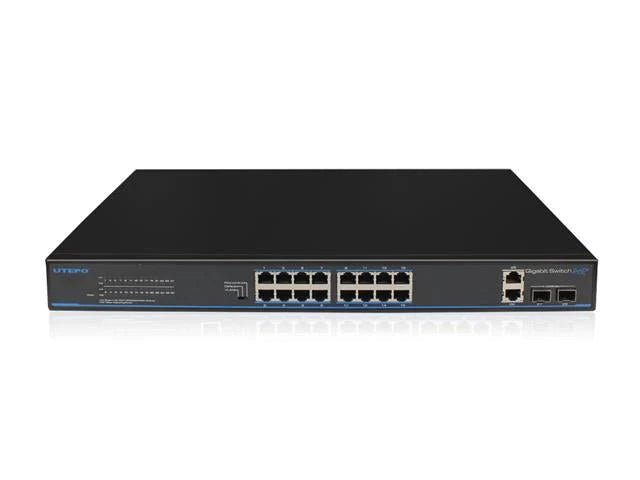

UTEPO UTP3-GSW1604TS-P200

SKU: UTEPO UTP3-GSW1604TS-P200

BRAND: UTEPO


UTEPO 16 Port Gigabit PoE Switch with 2 x Gigabit Uplink Ethernet Port & 2 Gigabit Fibre Ports, 40Gbps, PoE O/P:54V DC 30W Max, POE Budget:170W, 100~240V AC, 50/60Hz

16 Port Gigabit PoE Switch

Features

Abundant Interfaces

  • UTP3-GSW1604TS-P200: 16*10/100/1000Base-T PoE RJ-45 ports
    UTP3-GSW2404TS-P420: 24*10/100/1000Base-T PoE RJ-45 ports
  • 2*10/100/1000 Base-T RJ-45 Ports
  • 2*1000 Base-X SFP ports

High Peformance Design

  • 6kV surge immunity
  • 6kV contact discharge, 8kV air discharge ESD protection
  • Metal shell design
  • Rack mounted / desktop / wall mounted installation

Support 3 Working Modes

  • Default: all ports are free to communicate.
  • VLAN: downlink ports are isolated from each other, but can
    communicate with uplink ports.
  • Flow control: enable flow control function, this mode is suitable for
    video surveillance transmission.

Specifications

Ethernet Ports

  • Uplink Ports : 16*10/100/1000 Base-T PoE RJ-45 (Auto-MDI/MDI-X)
  • Downlink Ports
    • 2*10/100/1000 Base-T RJ-45
    • 2*1000 Base-X SFP

PoE

  • PoE Standard : IEEE 802.3af/at (PSE)
  • PoE Power Supply Type : End-span
  • PoE Pin Assignment : 1/2(+),3/6(-)
  • PoE Power Output : 53.5V DC
  • PoE Power : 30W max for each port, 175W max

Switch Property

  • Standards : IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3X
  • Forwarding Modes : Store and Forward
  • Packet Buffer 4Mbyte : 4Mbyte
  • MAC Table : 8k, support auto learning
  • Switching Capacity : 40Gbps / non-blocking
  • Packet Forwarding Rate : 29.8Mpps

Power Supply

  • Input Voltage : 100~240VAC 50/60Hz
  • Power Consumption : 200W (Including PoE)

Reliability

  • Surge Immunity : 6kV, Standard: IEC6000-4-5
  • ESD Protection : 6kV Contact Discharge, 8kV Air Discharge, standard: IEC61000-4-2
  • Operating Temperature : -10°C~50°C
  • Storage Temperature : -40°C~85°C
  • Operating Humidity : 5%~95% (Non-condensation)

Physical Parameter

  • Led Indicators
    • 1* PWR Indicator
    • 16* Downlink Port Link Indicators
    • 16* Downlink Port PoE Indicators
    • 4* Uplink Port Link Indicator

DIP Switch

  • Default: all ports are free to communicate.
  • VLAN: downlink ports are isolated from each other, but can communicate with uplink ports.
  • Flow control: enable flow control function, this mode is suitable for video surveillance transmission.
  • Dimensions (W*D*H) : 442mm*285mm*44mm
  • Gross Weight : 5000g±60g
  • Net Weight : 3800g±40g
  • Material : Metal shell
  • Installation : Rack mounted/desktop/wall mounted

Downloads

Additional Information

Device Switch
Type 16 Port | Gigabit | PoE
