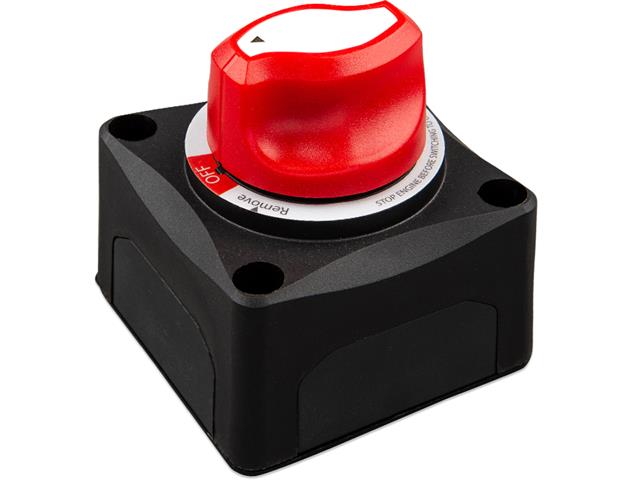

VICT BATTERY SWITCH ON/OFF 275A

SKU: VICT BATTERY SWITCH ON/OFF 275A

BRAND: Victron


Victron Battery Switch ON/OFF 275A up to 48V, 69.5x76.3x69.5mm, Terminal Diameter:3/8 inch / 9.53mm, Cranking Rating:1250A, 0.2kg

Battery Switch ON/OFF 275A

Specifications

Battery switch

  • Max. continuous current : 275 A
  • One minute rating : 455 A
  • Cranking rating : 1250 A
  • Voltage rating : 48 V
  • Terminal material : Tin-plated copper
  • Hex nut material : Tin-plated copper
  • Terminal diameter : 3/8 inch / 9.53 mm
  • Recommended torque : 70 lbf·inch / 8 N·m
  • Base material : Glass fiber reinforced nylon
  • Weight : 0.4 lb / 0.2 kg
  • Dimensions (l x w x h) : 2.7 x 3.0 x 2.7 inch 69.5 x 76.3 x 69.5 mm
  • Mounting : Surface or rear panel mount
  • Ignition protected : ISO8846 / SAE J1171

Downloads

Additional Information

Device Switch
Type Battery | ON/OFF 275A
