VICT ORION 12/24 50A

SKU: VICT ORION 12/24 50A

BRAND: Victron

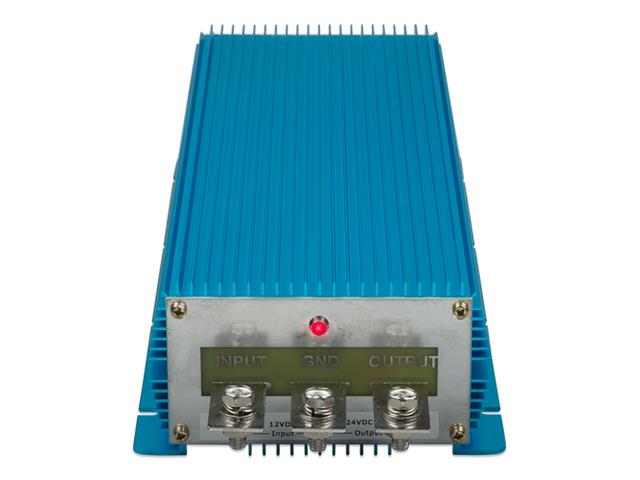

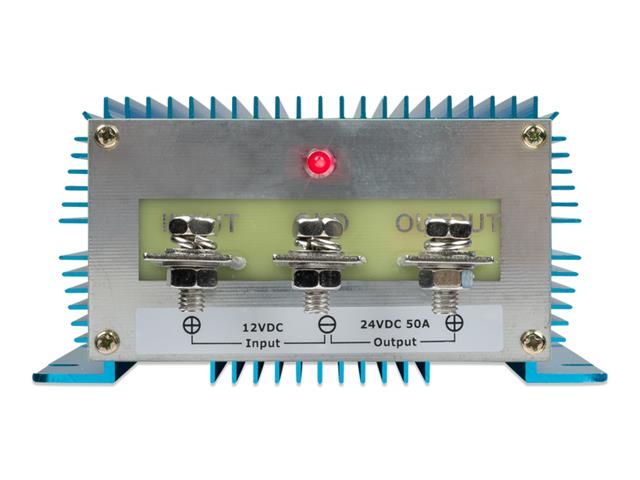

Victron Encapsulated DC-DC Converter 12V 50A 1200W, I/P Votage Range: 10→15VDC, O/P Voltage 24VDC, M6 Bolts, IP67, {340x127x63mm}, 3Kg

Encapsulated DC-DC Converter

Overview

Completely encapsulated: waterproof, shockproof and ignition protected
Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in
resin.

Extra-long input and output cables
Thanks to the cables of 1.8 meters in length, intermediate cable interconnections to increase length even more will in most cases not be
needed. This is an important reliability increasing feature in an area were IP67 protection grade is needed.

Wide input voltage range
With 15 to 40 Volts input range, a stable output is ensured during surges or sags due to other equipment connected to same battery.

Protected against overheating
It can be used in a hot environment such as a machine room.

Downloads

Additional Information

Device Converter
Type Encapsulated | DC-DC
