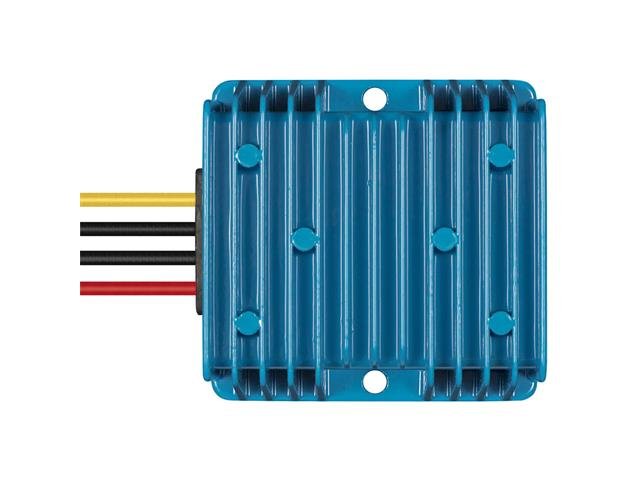

• Orion IP67 :  24/12-20
• Input voltage range : 15-40VDC
• Under voltage shutdown : 13V
• Under voltage restart : 14V
• No load current at : 50mA
• DC output voltage : 12V +/- 3%
• Maximum continuous output current : 20A
• Efficiency : 95%
• Ripple & Noise : 75mVpp
• Operating temperature range (derate 3% per °C above 40°C) : -40 to +70°C (full rated output up to 40°C)
• Overload protection : Hiccup mode, recovers automatically after fault condition is removed
• Short circuit proof : Yes
• Protection against reverse polarity connection : With external fuse or circuit breaker (not included)

ENCLOSURE

• Material & Colour : Aluminium (blue RAL 5012)
• Protection category : IP67
• DC connection : Two input and two output cables, length 1,8m
• Cable cross section, input : 2,6mm2 (13 AWG)
• Cable cross section, output : 2,6mm2 (13 AWG)
• Weight (kg) : 300 g
• Dimensions (h x w x d in mm)  : 74 x 74 x 32

1. Datasheet - VICT ORION 24/12 20A
