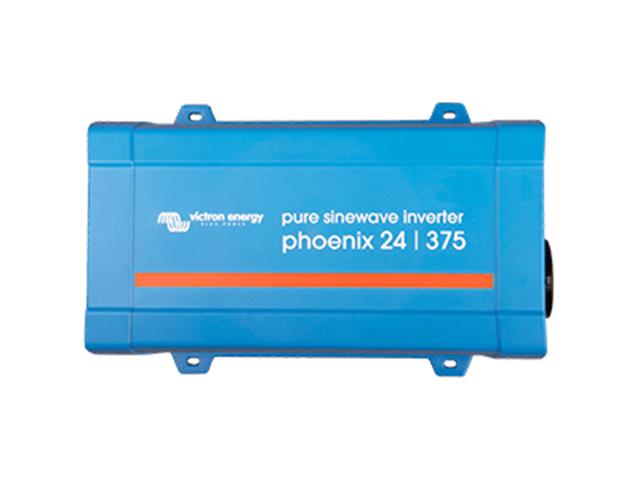

VICT PHOENIX INVERTER 24V/375
SKU: VICT PHOENIX INVERTER 24V/375
BRAND: Victron
R 2,006.75 (inc VAT) R 1,745.00 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over ZAR 1,000.00
Victron Phoenix Pure Sine Wave Inverter 24V 375VA 300/260W, Peak Power 700W, VE.Direct, Battery Connection: Screw Terminals, Max Cable Cross Section: 10mm² /AWG8, wihtout Battery Charger , IP21, 3Kg
Phoenix Pure Sine Wave Inverter
Specifications
Cont. power at 25°C (1) : 375VA
Cont. power at 25°C / 40°C : 300 / 260W
Peak power : 700W
Output AC voltage / frequency (adjustable) : 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1%
Input voltage range : 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V
DC low shut down (adjustable) : 9,3 / 18,6 / 37,2V
Dynamic (load dependent) DC low shut down (fully configurable) Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff
DC low restart and alarm (adjustable) : 10,9 / 21,8 / 43,6V
Battery charged detect (adjustable) : 14,0 / 28,0 / 56,0V
Max. efficiency : 89 / 89 / 90%
Zero-load power : 5,6 / 6,1 / 8,5W
Default zero-load power in ECO mode (default retry interval: 2,5 s, adjustable) : 0,9 / 1,4 / 2,6W
ECO mode stop and start power setting : Adjustable
Protection (2) : a - f
Operating temperature range : -40 to +65°C (fan assisted cooling) Derate 1,25% per °C above 40°C
Humidity (non-condensing) : max 95%
ENCLOSURE
Material & Colour : Steel chassis and plastic cover (blue Ral 5012)
Battery-connection : Screw terminals
Maximum cable cross-section : 10mm2 / AWG8
Standard AC outlets :
230V: Schuko (CEE 7/4), IEC-320 (male plug included)
UK (BS 1363), AU/NZ (AS/NZS 3112)
120V: Nema 5-15R, GFCI
Protection category : IP 21
Weight : 3,0kg / 6,6lbs
Dimensions (h x w x d, mm) (h x w x d, inch) : 86 x 165 x 260, 3.4 x 6.5 x 10.2
ACCESSORIES
Remote on-off : Yes
Automatic transfer switch : Filax
Downloads
Additional Information
Device
Inverter
Type
Phoenix | Pure Sine Wave
Experience reliable power with the VICT Phoenix Inverter 24V/375. This pure sine wave inverter delivers 375VA of continuous power, making it perfect for sensitive electronics. With a peak power of 700W and adjustable output, enjoy efficient performance and peace of mind for all your power needs. Lightweight and compact, it’s ideal for home, RV, or off-grid applications.
