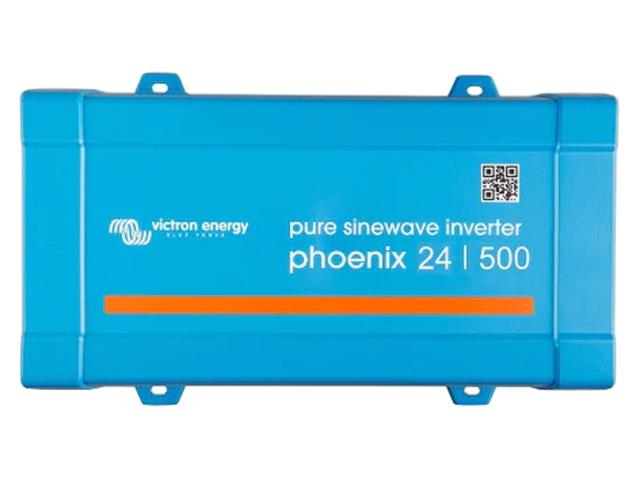

Victron Phoenix Pure Sine Wave Inverter 24V 500VA 400/350W, Peak Power 900W, VE.Direct, Battery Connection: Screw Terminals, Max Cable Cross Section: 10mm² /AWG8, wihtout Battery Charger, IP21, {86x172x275mm} 3.9Kg
Phoenix Pure Sine Wave Inverter
Specifications
- Cont. power at 25°C (1) : 500VA
- Cont. power at 25°C / 40°C : 400 / 350W
- Peak power : 900W
- Output AC voltage / frequency (adjustable) : 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1%
- Input voltage range : 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V
- DC low shut down (adjustable) : 9,3 / 18,6 / 37,2V
- Dynamic (load dependent) DC low shut down (fully configurable) : Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff
- DC low restart and alarm (adjustable) : 10,9 / 21,8 / 43,6V
- Battery charged detect (adjustable) : 14,0 / 28,0 / 56,0V
- Max. efficiency : 90 / 90 / 91%
- Zero-load power : 6 / 6,5 / 9W
- Default zero-load power in ECO mode (default retry interval: 2,5 s, adjustable) : 1 / 1,5 / 3,0W
- ECO mode stop and start power setting : Adjustable
- Protection (2) : a - f
- Operating temperature range : -40 to +65°C (fan assisted cooling) Derate 1,25% per °C above 40°C
- Humidity (non-condensing) max 95%
ENCLOSURE
- Material & Colour : Steel chassis and plastic cover (blue Ral 5012)
- Battery-connection : Screw terminals
- Maximum cable cross-section : 10mm2 / AWG8
- Standard AC outlets

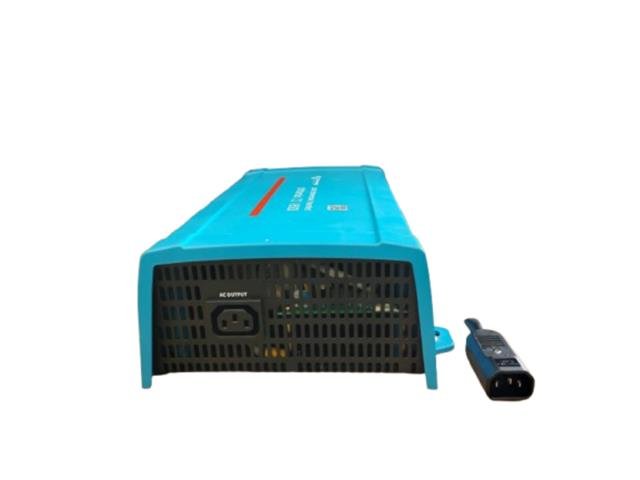

- 230V: Schuko (CEE 7/4), IEC-320 (male plug included)
- UK (BS 1363), AU/NZ (AS/NZS 3112)
- 120V: Nema 5-15R, GFCI
- Protection category : IP 21
- Weight : 3,9kg / 8.5lbs
- Dimensions (h x w x d, mm) (h x w x d, inch) : 86 x 172 x 275 : 3,4 x 6,8 x 10,8
ACCESSORIES
- Remote on-off : Yes
- Automatic transfer switch : Filax
Downloads
Additional Information
Device |
Inverter |
Type |
Phoenix | Pure Sine Wave |
