Victron Smart Battery Protect 12/24V 220A, Operating Voltage Range: 6-35V, Alarm O/P Delay: 12sec, Load Disconnect Delay:90 Sec (Immediate if triggered by the VE.Bus BMS), M8/9Nm, Max Load on Alarm O/P:50ma, 60x123x12mm, IP67

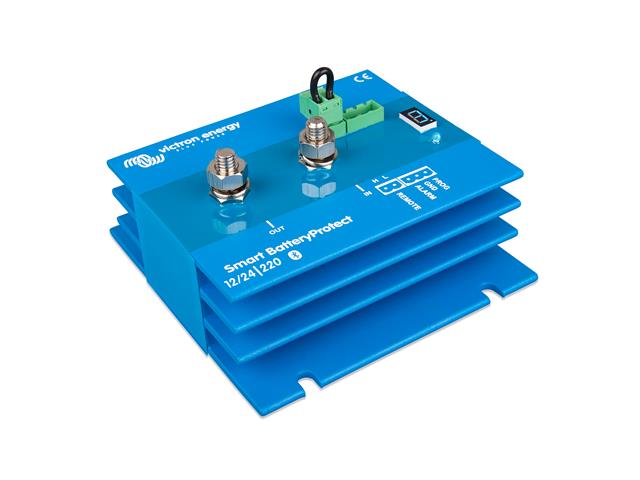

Smart Battery Protect 12/24V 220A
Overview
The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine. The on/off input can be used as a system on/off switch
Specifications
- Smart BatteryProtect Smart : BP-220
- Maximum continuous load current* : 220A
- Peak current (during 30 seconds) : 600A
- Operating voltage range : 6 –35V
- Current consumption
- BLE On When on: 1,4 mA When off or low voltage shutdown: 0,9 mA
- BLE Off When on: 1,2 mA When off or low voltage shutdown: 0,7 mA
- Alarm output delay : 12 seconds
- Maximum load on alarm output : 50 mA (short circuit proof)
- Load disconnect delay : 90 seconds (immediate if triggered by the VE.Bus BMS)
- Load reconnect delay : 30 seconds
- Default thresholds : Disengage: 10,5V or 21V Engage: 12V or 24V
- Operating temperature range : Full load: -40°C to +40°C (up to 60% of nominal load at 50°C)
- IP rating : Electronics: IP67 (potted) Connections: IP00
- Connection : M8
- Mounting Torque : 9 Nm
- Weight : 0,8 kg 1.8 lbs
- Dimensions (hxwxd) : 60 x 123 x 121 mm (2.4 x 4.8 x 4.8 inch)
Downloads
Additional Information
| Device |
Battery Protect |
| Type |
Smart | 12/24V 220A |
Protect your battery investment with the VICT Smart Battery Protect 12/24V 220A. This essential device disconnects non-essential loads before your battery is fully drained, ensuring longevity and reliable performance. Designed for efficiency, it features an IP67 rating for durability and operates seamlessly in extreme temperatures. Keep your system safe and your adventures uninterrupted with this smart solution.
