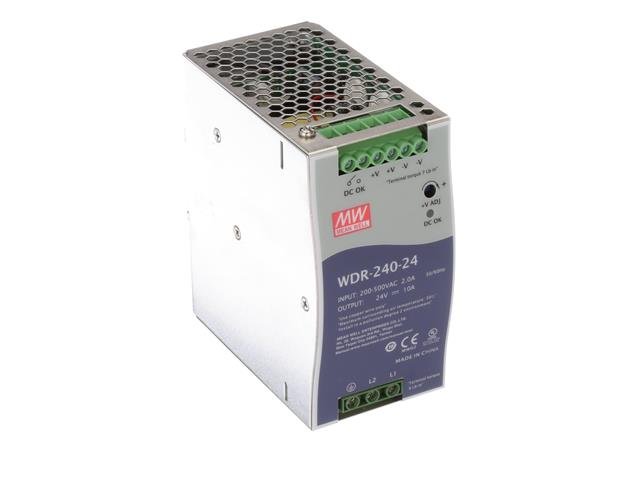

WDR-240-24

SKU: WDR-240-24

BRAND: Meanwell


DIN Rail Metal Case Switch Mode Power Supply with Active PFC. Wide Input: 180 ~ 550VAC/254 - 780VDC. Output 24VDC @ 10A (DIN Rail Metal W/I PFC 24V 10A)

Metal Case Switch Mode Power Supply

Feature

  • 120 W to 480 W
  • Slim design and 180 V ac to 550 V ac wide input range (Single and two phase)
  • 100% full load burn-in test
  • Assemble on industrial rail TS-35/7.5 or 15
  • Built-in DC OK relay contact
  • Protections: Short circuit/Overload/Over voltage/Over temperature
  • Cooling by free air convection
  • UL 508 (industrial control equipment) approved
  • EN61000-6-2 (EN50082-2) industrial immunity level
  • 3 year warranty

Specifications

  • AC or DC Input Voltage : AC
  • AC or DC Output Voltage : DC
  • Input Voltage : 180 → 550V ac
  • Output Voltage : 24V DC
  • Output Current : 10A
  • Power Rating : 240W
  • Number of Outputs : 1
  • Electrical Phase : 1,2
  • Height : 125mm
  • Width : 63mm
  • Depth : 114mm
  • Output Voltage Adjustment Range : 24 → 28V
  • Series : MDR
  • MTBF : 141.1kh
  • Mounting Type : DIN Rail Mount
  • Standards Met : RoHS Compliant, TUV EN 60950-1, UL 508
  • Minimum Temperature : -30°C
  • Load Regulation : ±1%
  • Maximum Temperature : +70°C
  • Ripple And Noise : 150mV Pk-Pk
  • Special Features :     Overvoltage and Short Circuit Protection

Downloads

Additional Information

Device Power Supply
Type Metal Case | Switch Mode
