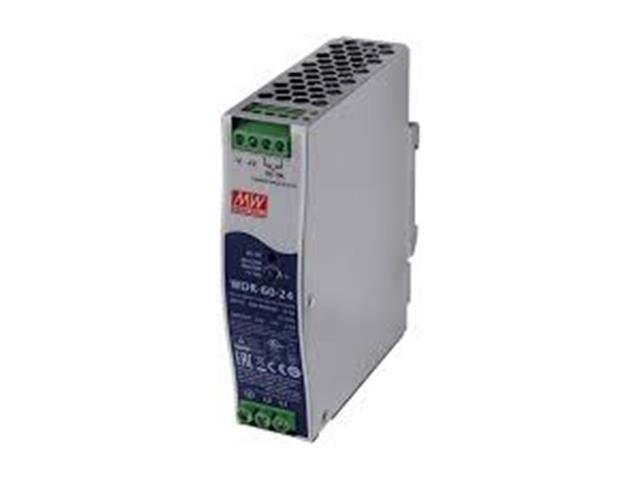

WDR-60-24

SKU: WDR-60-24

BRAND: Meanwell


DIN Rail Power Supply Wide AC Input 180 - 550VAC - 24VDC Output @ 2,5A

DIN Rail Power Supply

Overview

WDR-60 series is a 60W DIN rail power supply with ultra-wide AC input range. It is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. Main features are as following: it can accept 180∼550Vac ultra-wide input voltage range for single phase or 2-phase system, easy to install DIN rail type, narrow width (32mm) in slim design, -30∼+85°C wide range operating temp, 4KVAC high isolation voltage, operation at 2000m altitude, adjustable output voltage (+20% max.), high efficiency, low ripple & noise, complete protections and so on. It suitable for industrial automation, surveillance, telecommunication and more applications.

Specifications

  • Input Voltage : 180 → 550 V ac, 254 → 780 V dc
  • Output Voltage : 24 V dc
  • Output Current : 2.5 A
  • Power Rating : 60 W
  • Number of Outputs : 1
  • Type : Power Supply
  • Height : 125.2 mm
  • Mounting Type : DIN Rail Mount
  • SerieS : WDR-60
  • Output Voltage Adjustment Range : 24 → 29 V
  • Depth : 102 mm
  • MTBF : 313.68 kh
  • Maximum Temperature : +85 °C
  • Load Regulation : ±0.5 %
  • Ripple And Noise : 150 mV Pk-Pk
  • Efficiency : 89 (Typ.) %
  • Minimum Temperature : -30 °C

Downloads

Additional Information

Device Power Supply
Type DIN Rail
