DPM MINI DIG VOLTMTR 0-100V RD3W

Name: DPM MINI DIG VOLTMTR 0-100V RD3W - Communica [Part No: DPM MINI DIG VOLTMTR 0-100V RD3W]
Brand: Communica
SKU: DPM MINI DIG VOLTMTR 0-100V RD3W
Price: 17.39 ZAR
Availability: InStock

SKU: DPM MINI DIG VOLTMTR 0-100V RD3W

BRAND: Communica

In Stock
R 20.00_{(inc VAT)}
R 17.39_{(ex VAT)}

Collections: Test & Measurement

Type: Panel Meters

Category: Digital Panel Voltmeters

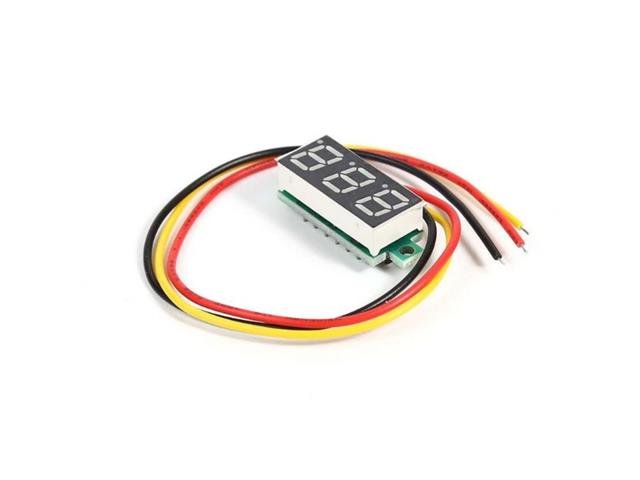

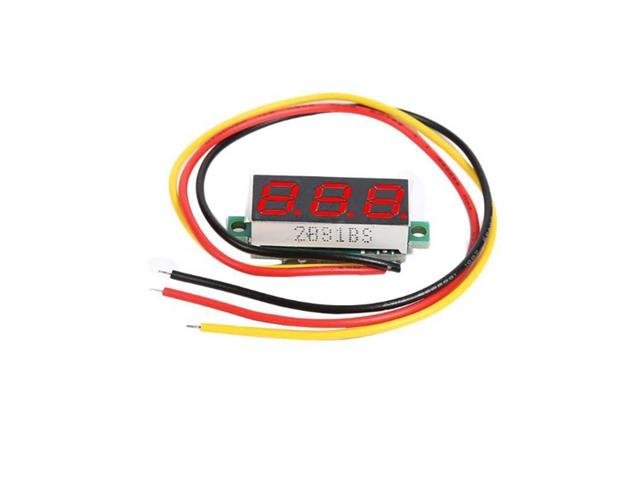

3 Wire Mini Digital Voltage Meter 0-100V Red

Mini Digital Voltage Meter

Features

0.28 inch LED screen mini size
Can work on 5V 9V 12V 24V electronic parts
With 3 cables and reverse connection protection

Note

0-100V, it is for using 3 cables.
Voltage should below 30V if you only using 2 cables (3.5 – 30Vdc)

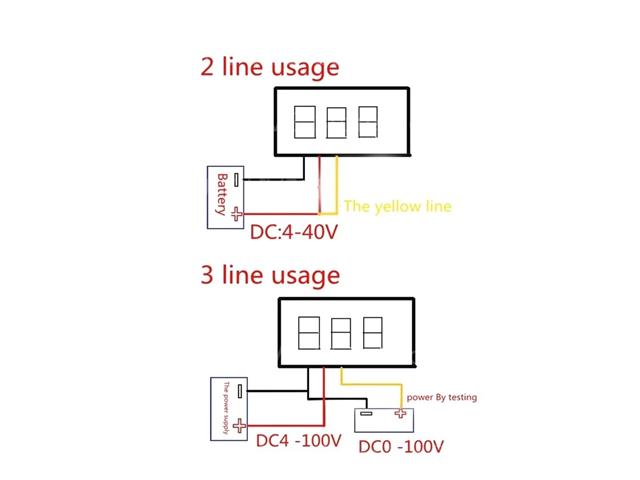

Connection

Three wires 0-100V :

Power supply: Red (positive) and black (negative)
Measurement: Yellow (positive) and black (negative)

Two wires 3.5-30V (power and measure from same source)

Red and yellow (positive)
Black (negative)

Specifications

Display mode: Three 0.28 LED digital tube
Display color: Green/Red/Blue/Yellow
Update Rate: About 500 ms/time
Physical size: 30 x 12 x 8.5 mm (L*W* H, including installation ear)
Power supply: Don't need the power supply, direct use of the test voltage as a power supply
Lead wire length: 10 cm
The minimum input : 3.50V
The maximum input : 30V
Measurement range : DC3.50 - 30V
Operation temperature: -10 degrees~65 degrees
Measurement accuracy : plusmn (1% + 2 Digit)
Mounting holes distance : 26mm
Red line : Power Supply +,Measure Voltage +,(3.50-30V DC)
Black line : Power Supply -, Measure Voltage

Additional Information

Device	Voltage Meter
Type	Mini \| Digital
