GDM21FB-V24-10D

Name: GDM21FB-V24-10D - Communica [Part No: GDM21FB-V24-10D]
Brand: Hirschmann
SKU: GDM21FB-V24-10D
Price: 264.50 ZAR
Availability: InStock

SKU: GDM21FB-V24-10D

BRAND: Hirschmann

R 304.18_{(inc VAT)}
R 264.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Rectangular Connectors

Category: Solenoid Valve Connectors DIN43650

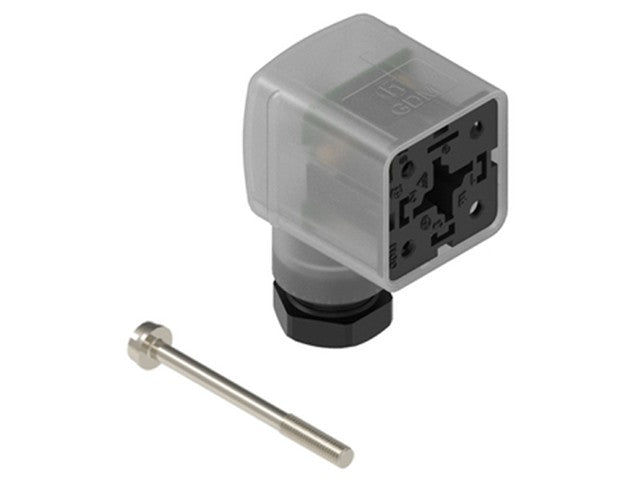

Valve Connector - Cube Female DIN43650-A - 2 Pole + Earth with Free Wheel Diode, Rectifier, Varistor + Yellow LED - 10A 24VAC/VDC PG11 IP65 4 - 11mm OD Cable Entry Black (934888148)(= GDML2011-LED24VR YE BK)

Cube Female Valve Connector

Specifications

Product Family	Valve Connectors
Product Sub Family	GDM Standard
Connector Type	Field attachable
Type of Contact / Gender	Female
Connector Design	Angled
Number of Pins	2+PE (PE across cable outlet)
Coding	A
Shielding	Unshielded
Attachment Type	Central Screw
Replacement for	ID: 932521002 Name: GDML 2011 LED 24 VR schwarz ( Yellow LED instead of Red LED)
Rated Voltage	24 V
Rated Impulse Voltage	4.0 kV (PCBA 2.0 kV)
Operating Voltage	24 V AC/DC
Rated Current*	10 A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 50
Type of Connection	Screw
Cable Gland	PG11
Conductor Cross Section	0.25 - 1.5 mm²
Suitable Cables	Ø 4.5 - 11 mm
Ambient Temperature (Operation)*	-25°C to +80°C
Protection Degree / IP Rating**	IP65
Design Standard	DIN EN 175301-803-A, ISO 4400
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material	CuZn
Contact Plating	Cu/Sn
Contact Bearer Material	PA GF
Contact Bearer Color	Black
Flammability Class (Contact Bearer)	UL 94 HB
Housing Material	PA GF
Housing Color	Translucent
Flammability Class (Housing)	UL 94 HB
Cable Gland Material	PA GF
Cable Gland Gasket	NBR
Cable Gland Color	Black
Attachment Material	Steel, Philips combi slot
Gasket Material	Sold separately

Protection Circuitry	Varistor with yellow LED
Function Indicator	Yellow LED
Protective Circuit	Varistor
Clamping Voltage	47 V ± 10%
Fastening Torque (Contact Screw)	(40-50) Ncm for conductor size 0.5 - 1.5 mm²; (30-40) Ncm for conductor size 0.34 mm²; (25-30) Ncm for conductor size 0.25 mm²
Fastening Torque (Cable Gland)	(250-375) Ncm
Fastening Torque (Attachment)	(50-60) Ncm

Downloads

Datasheet - GDM21FB-V24-10D

Additional Information

Device	Connector
Type	Cube \| Female \| Valve

Upgrade your connectivity with the GDM21FB-V24-10D Cube Female Valve Connector. Designed for robust performance, this IP65-rated connector features a yellow LED indicator and integrated protection circuitry, ensuring reliable operation in demanding environments. With a 10A capacity and compatibility with a range of cable sizes, it’s perfect for both AC and DC applications. Enhance your system’s efficiency and safety today!
